Rear Console Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

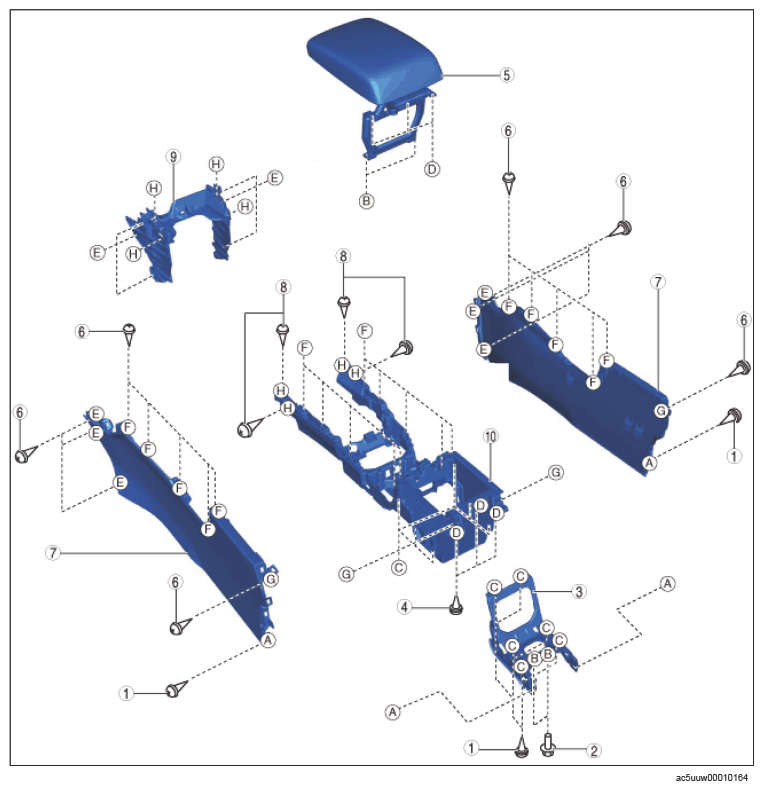

- Disassemble in the order shown in the figure.REAR CONSOLE COMPONENT OPERATIONS
Component no Refer to 1 Screw 2 Bolt 3 Rear console bracket No. 2
(See CONSOLE LID REMOVAL/INSTALLATION .)4 Screw 5 Console lid
(See CONSOLE LID REMOVAL/INSTALLATION .)6 Screw 7 Side panel
(See Side Panel Removal Note .)8 Screw 9 Rear console cover 10 Rear console box - Assemble in the reverse order of disassembly.
