Console Lid Removal/Installation

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    2. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
    3. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    4. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    6. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    7. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    8. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the bolts and screws.

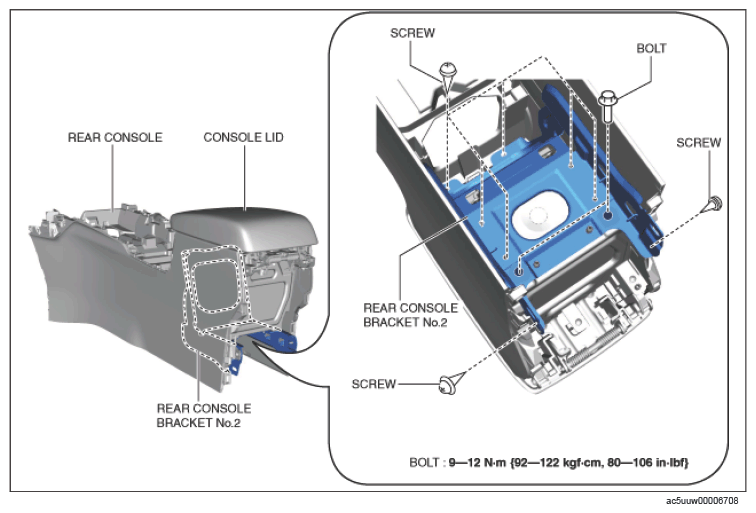

    Fig 1: Rear Console Bracket No. 2 Bolts And Screws With Torque Specification
    G15642533Courtesy of MAZDA MOTORS CORP.
  4. Remove rear console bracket No. 2.

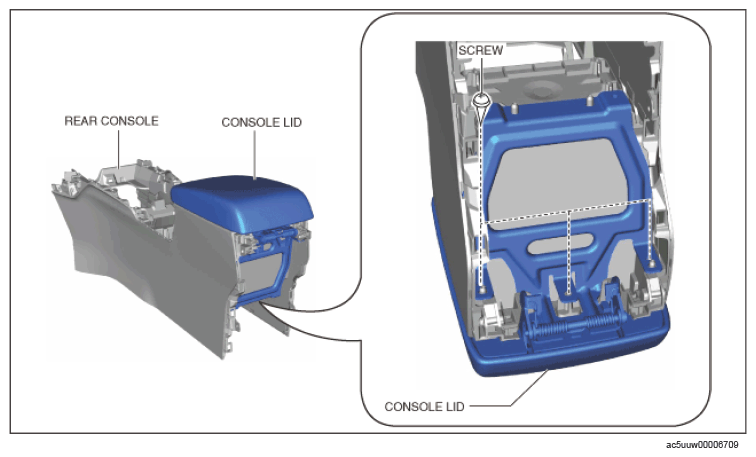

  5. Remove the screws.
    G15642534Courtesy of MAZDA MOTORS CORP.
  6. Open the console lid.
    G15642535Courtesy of MAZDA MOTORS CORP.

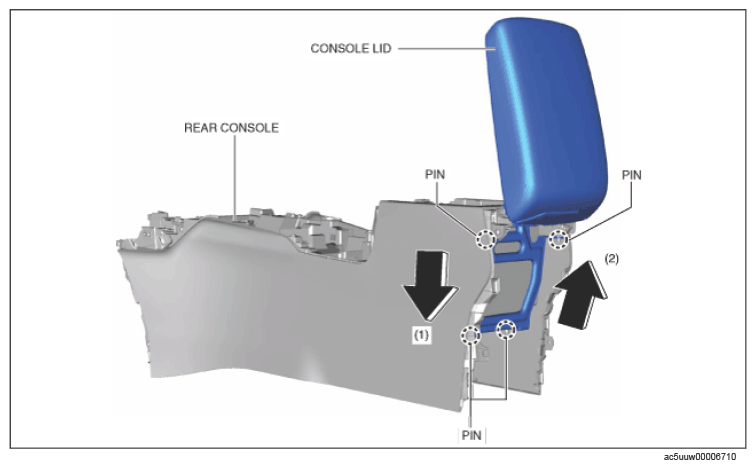

  7. Move the console lid in the direction of arrow (1) shown in the figure, and detach the pins.
  8. Remove the console lid in the direction of arrow (2) shown in the figure.
  9. Install in the reverse order of removal.
