Vanity Mirror Illumination Inspection: Notes
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the sunvisor. (See SUNVISOR REMOVAL/INSTALLATION .)

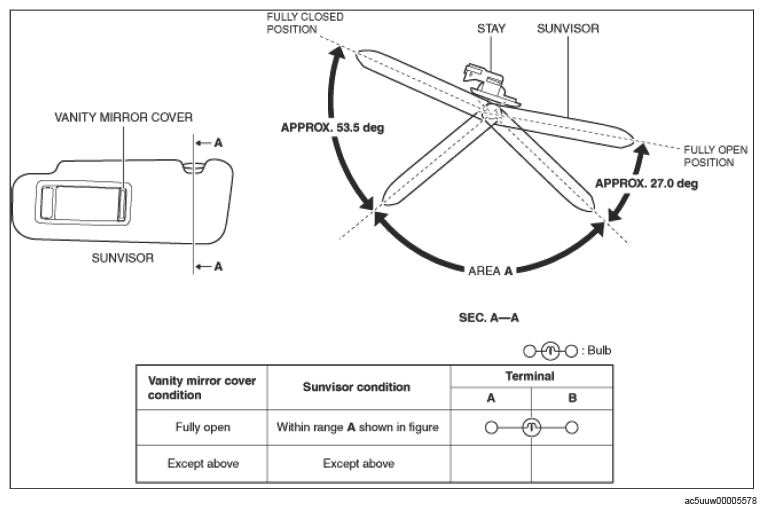

- Verify that the continuity between the vanity mirror illumination terminals is as indicated in the table.
