SUNVISOR Removal/Installation

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (With vanity mirror illumination) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

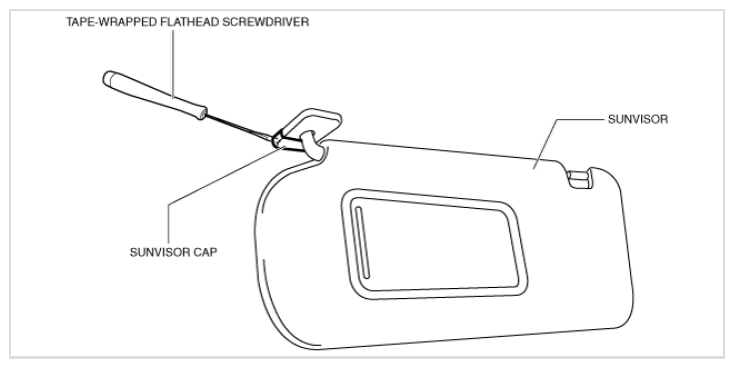

  2. Insert a tape-wrapped flathead screwdriver into the position shown in the figure.
    G16333840Courtesy of MAZDA MOTORS CORP.

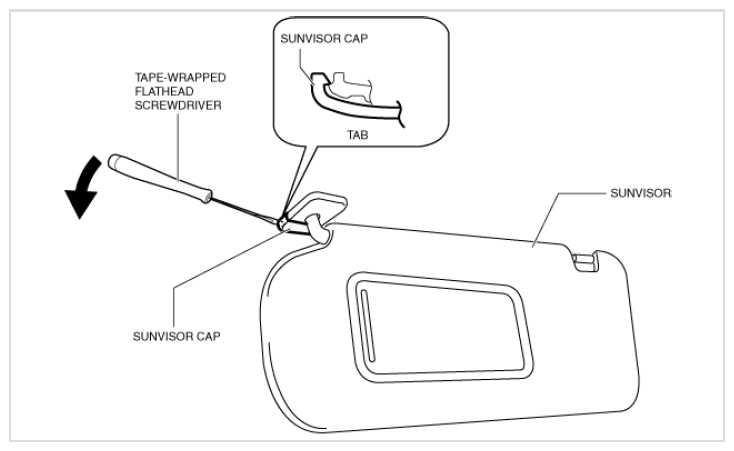

  3. Move the tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure, detach the tab, and remove the sunvisor cap.
    G16333841Courtesy of MAZDA MOTORS CORP.

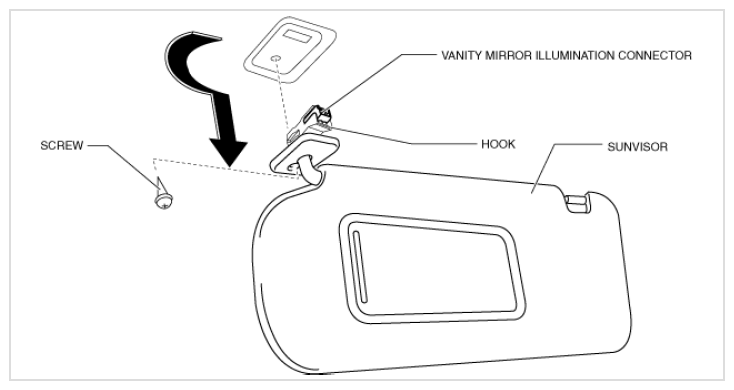

  4. Remove the screw.
    G16333842Courtesy of MAZDA MOTORS CORP.
  5. Move the sunvisor in the direction of the arrow shown in the figure and detach the hook.
  6. Disconnect the vanity mirror illumination connector. (With vanity mirror illumination)

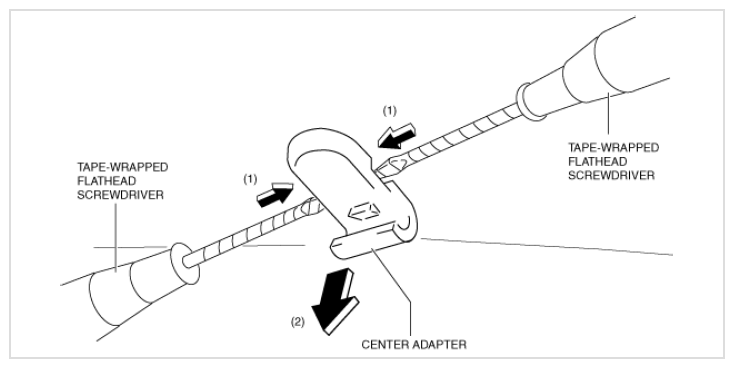

  7. Using two tape-wrapped flathead screwdrivers, press the center adapter tabs in the direction of arrows (1) shown in the figure, and remove the center adapter in the direction of arrow (2).
    G16333843Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
