Interior, Front

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the console panel. (Without rear vent duct) (See REAR CONSOLE REMOVAL/INSTALLATION .)
Remove the following parts. (With rear vent duct)
1. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
2. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
4. Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION .)
5. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
6. Upper panel (without wireless charger (Qi)) (See UPPER PANEL REMOVAL/INSTALLATION .)
7. Wireless charger (Qi) (with wireless charger (Qi)) (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION .)
8. Console-up (See CONSOLE-UP REMOVAL/INSTALLATION .)
9. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
10. Rear vent duct No. 2 (See REAR VENT DUCT REMOVAL/INSTALLATION .)
CAUTION:
- Disconnect the connector while holding the keyless antenna, otherwise the keyless antenna bracket could be damaged.

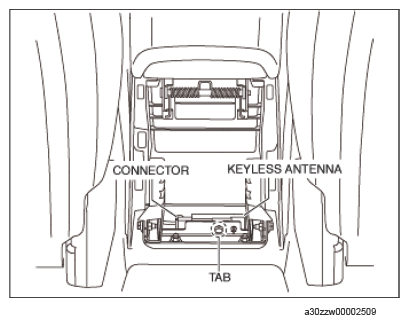

Disconnect the connector.

Courtesy of MAZDA MOTORS CORP.
Detach the tab of the keyless antenna bracket from the bracket.
Remove the keyless antenna.

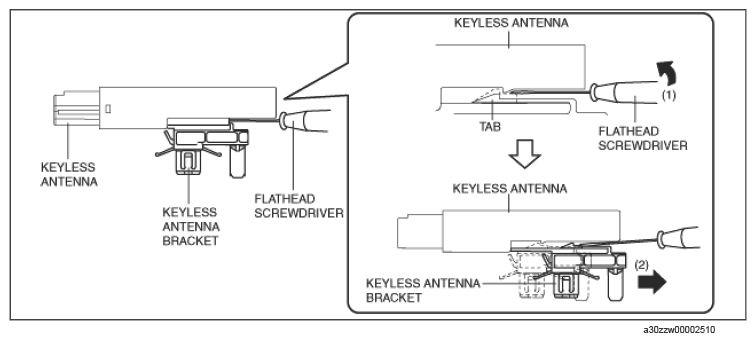

Insert the tape-wrapped flathead screwdriver into the position shown in the figure below.

Courtesy of MAZDA MOTORS CORP.
Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure above to press the keyless antenna bracket tab, and pull it in the direction of arrow (2) to detach the keyless antenna bracket from the keyless antenna.
Remove the keyless antenna bracket from the keyless antenna.
Install in the reverse order of removal.
