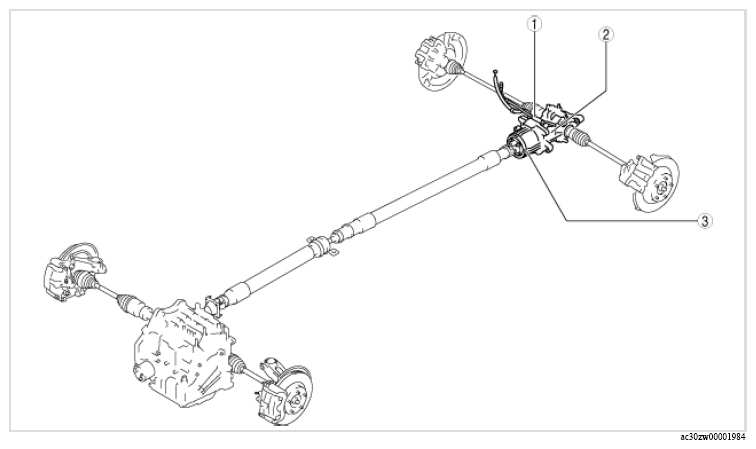

i-ACTIV AWD SYSTEM LOCATION INDEX

Courtesy of MAZDA MOTORS CORP.

I-ACTIV AWD SYSTEM COMPONENT OPERATION

Component no.	Refer to
1	AWD solenoid (See AWD SOLENOID INSPECTION .)
2	Differential oil temperature sensor (See DIFFERENTIAL OIL TEMPERATURE SENSOR INSPECTION .) (See DIFFERENTIAL OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
3	Coupling component (See COUPLING COMPONENT REMOVAL/INSTALLATION .) (See COUPLING COMPONENT TEMPERATURE SENSOR INSPECTION .) (See COUPLING COMPONENT CALIBRATION DATA WRITING .)
