Differential Oil Temperature Sensor Removal/Installation

WARNING:
  • Do not perform the procedure when the differential oil is at a high temperature. Otherwise, it could cause severe burns.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

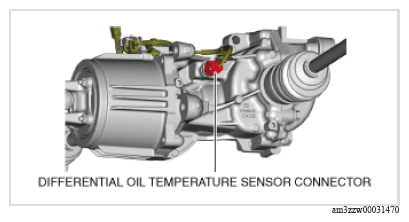

  2. Disconnect the differential oil temperature sensor connector.
    G16374201Courtesy of MAZDA MOTORS CORP.
  3. Remove the differential oil temperature sensor.

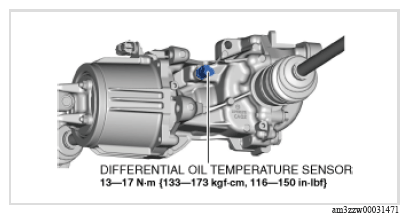

    Fig 1: Differential Oil Temperature Sensor With Torque Specifications
    G16374202Courtesy of MAZDA MOTORS CORP.
  4. Install the differential oil temperature sensor.
  5. Connect the differential oil temperature sensor connector.
  6. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
