DTC U2124-00: Communication Error With Front Side Radar Sensor (RH)
U2124-00: (VCM) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Communication error with front side radar sensor (RH) |
| Detection condition |
- The vehicle control module (VCM) detects that the front side radar sensor (LH) cannot receive the CAN signal from the front side radar sensor (RH).
|
| Fail-safe |
(See DTC TABLE [VCM]
.) |
| Possible cause |
- DTCs are stored in the following modules.
- Malfunction in wiring harness (including connector/terminal) between front side radar sensor (RH) and body ground (See CIRCUIT INSPECTION
.) (See
CONNECTOR INSPECTION
.)
- Malfunction in wiring harness (including connector/terminal) between IG1 relay and front side radar sensor (RH) (See
CIRCUIT INSPECTION
.) (See
CONNECTOR INSPECTION
.)
- Malfunction in wiring harness (including connector/terminal) between front side radar sensor (RH) and front side radar sensor (LH) (See
CIRCUIT INSPECTION
.) (See
CONNECTOR INSPECTION
.)
- Front side radar sensor (LH) (Refer to FRONT SIDE RADAR SENSOR REMOVAL/INSTALLATION
in service information.)
- Front side radar sensor (RH) (Refer to FRONT SIDE RADAR SENSOR REMOVAL/INSTALLATION
in service information.)
- Vehicle control module (VCM) malfunction (built into body control module (BCM)) (Refer to BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION
in service information.)
|
| Repeatability verification procedure |
- Clear the DTC recorded in the memory. (See
CLEARING DTC
.)
|
 Courtesy of MAZDA MOTORS CORP.
|

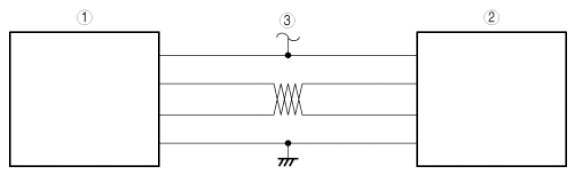

| 1 |
Front side radar sensor (LH) |
| 2 |
Front side radar sensor (RH) |
| 3 |
IG1 relay |
