Headlight Cleaner Motor Inspection
- Disconnect the negative battery terminal.
- Remove the front bumper.
- Disconnect the connector. (See HEADLIGHT CLEANER MOTOR REMOVAL/INSTALLATION .)WARNING:
- Water sprayed on the battery and ground could cause electrocution. When performing the headlight cleaner motor inspection, prepare a container to collect washer fluid and be careful not to spray washer fluid.

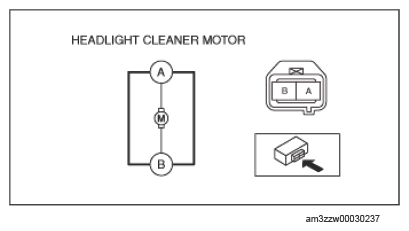

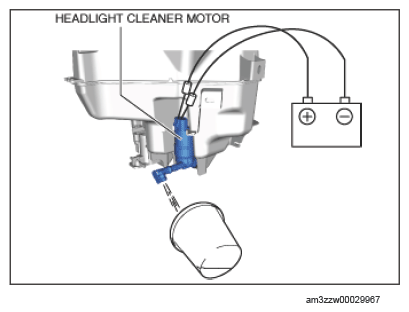

- Apply battery positive voltage to headlight cleaner motor terminal A, and connect terminal B to ground.
- Verify that washer fluid sprays from the headlight cleaner motor.
- If washer fluid does not spray from the headlight cleaner motor, replace the headlight cleaner motor. (See HEADLIGHT CLEANER MOTOR REMOVAL/INSTALLATION .)
