Headlight Cleaner Motor Removal/Installation

NOTE:
  • If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.
  1. Disconnect the negative battery terminal.
  2. Remove the front deflector (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)
  3. Remove the front mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

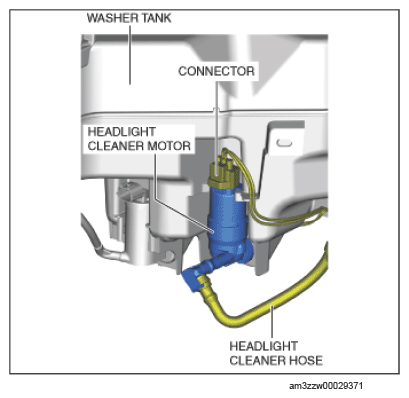

    G15721082Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the headlight cleaner hose from the headlight cleaner motor.
  6. Remove the headlight cleaner motor.

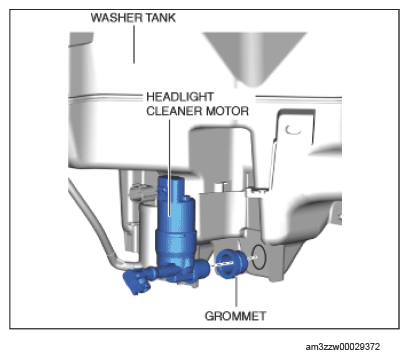

    G14584191Courtesy of MAZDA MOTORS CORP.
  7. Remove the grommet.
  8. Install in the reverse order of removal.
