Intake-Air System Removal/Installation: Notes
WARNING:
- A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

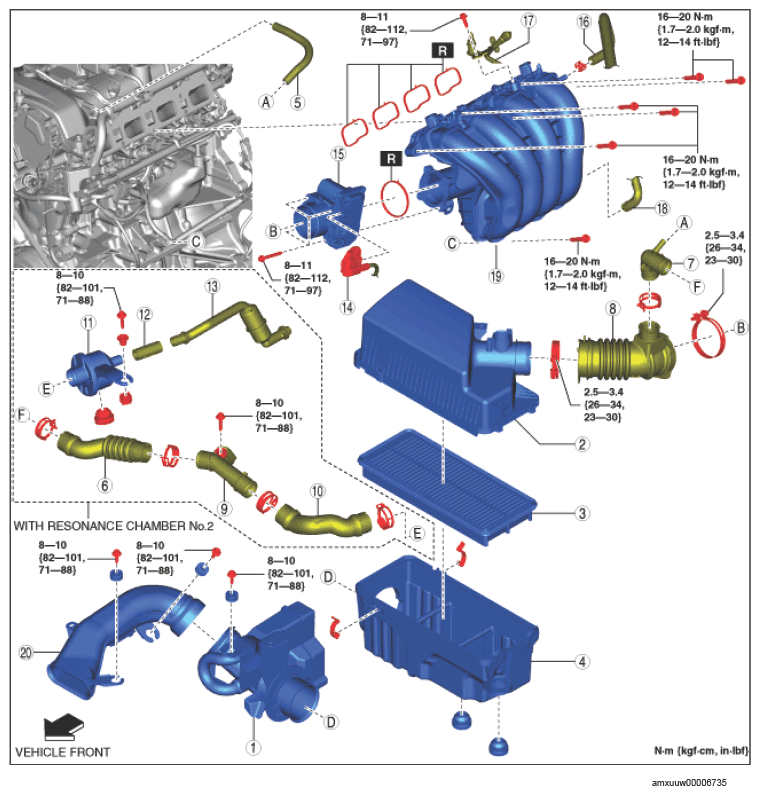

PART DESCRIPTION
| Component no. | Refer to |
|---|---|
| 1 | Resonance chamber No. 1 (See RESONANCE CHAMBER NO. 1 REMOVAL NOTE .) (See RESONANCE CHAMBER NO. 1 INSTALLATION NOTE .) |
| 2 | Air cleaner cover (See AIR CLEANER COVER INSTALLATION NOTE .) |
| 3 | Air cleaner element |
| 4 | Air cleaner case (See AIR CLEANER CASE INSTALLATION NOTE .) |
| 5 | Ventilation hose (See VENTILATION HOSE INSTALLATION NOTE .) |
| 6 | Air intake hose No. 1 (With resonance chamber No. 2) (See AIR INTAKE HOSE NO. 1 INSTALLATION NOTE .) |
| 7 | Joint pipe (See JOINT PIPE INSTALLATION NOTE .) |
| 8 | Air hose (See AIR HOSE INSTALLATION NOTE .) |
| 9 | Resonance duct (With resonance chamber No. 2) |
| 10 | Air intake hose No. 2 (With resonance chamber No. 2) (See AIR INTAKE HOSE NO. 2 INSTALLATION NOTE .) |
| 11 | Resonance chamber No. 2 (With resonance chamber No. 2) |
| 12 | Air intake hose No. 3 (With resonance chamber No. 2) (See AIR INTAKE HOSE NO. 3 INSTALLATION NOTE .) |
| 13 | Air intake pipe (With resonance chamber No. 2) |
| 14 | Throttle body connector |
| 15 | Throttle body |
| 16 | Vacuum hose (See VACUUM HOSE REMOVAL/INSTALLATION .) |
| 17 | Fuel hose |
| 18 | PCV hose (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION .) |
| 19 | Intake manifold (See INTAKE MANIFOLD REMOVAL NOTE .) (See INTAKE MANIFOLD INSTALLATION NOTE .) |
| 20 | Fresh-air duct (See FRESH-AIR DUCT REMOVAL NOTE .) (See FRESH-AIR DUCT INSTALLATION NOTE .) |
