Intake-Air System Removal/Installation
>>
Joint Pipe Installation Note
Joint Pipe Installation Note

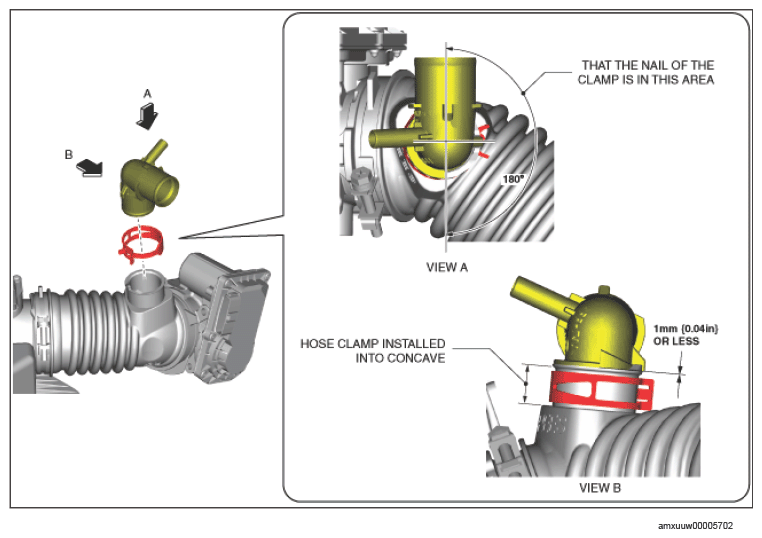

Install the joint pipe as shown in the illustration.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
