Signature Wing Illumination Inspection

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
Apply battery voltage to signature wing illumination short cord terminal A, and connect terminal F to ground.

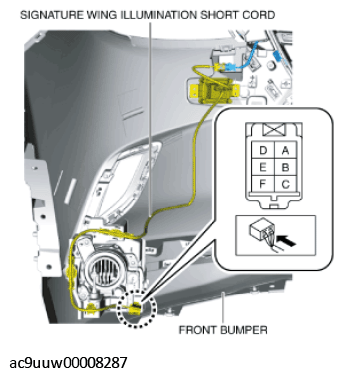

Fig 1: Front Bumper And Signature Wing Illumination Short Cord Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Verify that the signature wing illumination is turned on.
- If the signature wing illumination does not turn on, inspect the signature wing illumination short cord. (See SIGNATURE WING ILLUMINATION SHORT CORD INSPECTION .)
  - If the signature wing illumination short cord is normal, replace the signature wing illumination. (See SIGNATURE WING ILLUMINATION REMOVAL/INSTALLATION .)
