Signature Wing Illumination Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front bumper (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
    2. Radiator grille (See RADIATOR GRILLE REMOVAL/INSTALLATION .)
    3. Lower grille molding (See RADIATOR GRILLE DISASSEMBLY/ASSEMBLY .)
  3. Detach all the lower grille molding tabs from the signature wing illumination.

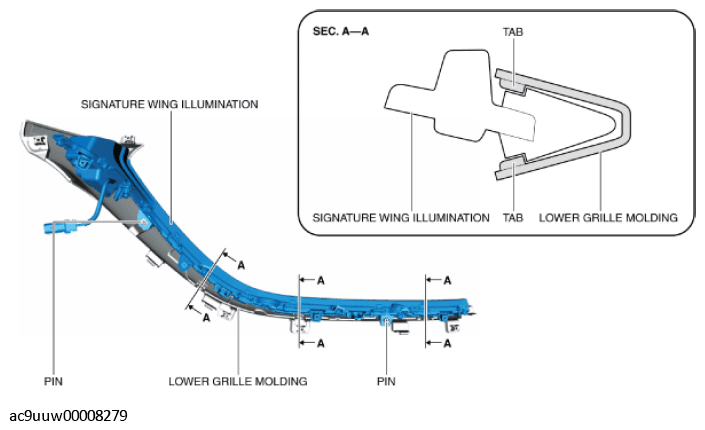

    Fig 1: Detaching Lower Grille Molding Tabs From Signature Wing Illumination
    G11435222Courtesy of MAZDA MOTORS CORP.
  4. Pull out the signature wing illumination from the lower grille molding pins.
  5. Remove the screws.

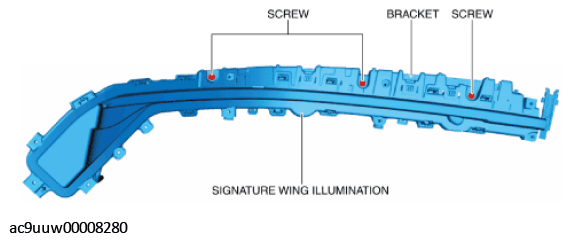

    Fig 2: Signature Wing Illumination, Bracket And Screws
    G11435223Courtesy of MAZDA MOTORS CORP.
  6. Remove the signature wing illumination.
  7. Install in the reverse order of removal.
