Lighting Systems Location Index (Us): Interior

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

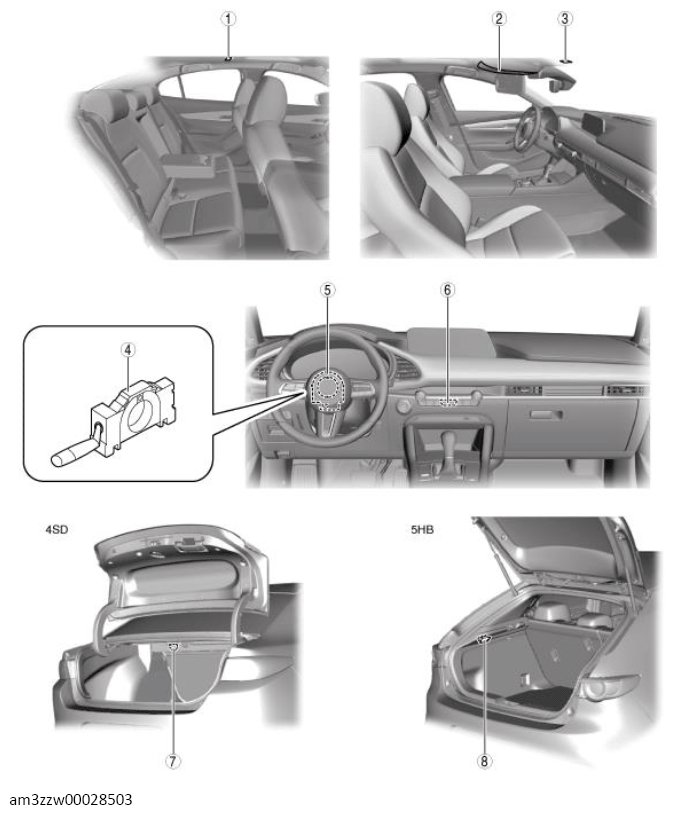

PARTS DESCRIPTION

1	Rear map light (See REAR MAP LIGHT BULB REMOVAL/INSTALLATION .) (See REAR MAP LIGHT REMOVAL/INSTALLATION .) (See REAR MAP LIGHT INSPECTION (US) .)
2	Front map light (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION .) (See FRONT MAP LIGHT REMOVAL/INSTALLATION (US) .) (See FRONT MAP LIGHT INSPECTION .)
3	Vanity mirror illumination (with vanity mirror illumination) (See VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION .) (See VANITY MIRROR ILLUMINATION INSPECTION .)
4	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION (US) .) (See LIGHT SWITCH INSPECTION (US) .)
5	Steering angle sensor (with adaptive front lighting system (AFS) or smart city brake support (SCBS)) (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION .) (See STEERING ANGLE SENSOR INSPECTION .)
6	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .) (See HAZARD WARNING SWITCH INSPECTION .)
7	Trunk compartment light (Sedan-4SD) (See TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION .)
8	Cargo compartment light (Hatchback-5HB) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION .) (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .) (See CARGO COMPARTMENT LIGHT INSPECTION .)
