Light Switch Removal/Installation (Us)

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the upper column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove the lower column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  4. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
  5. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
  6. Remove the Wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION (US) .)

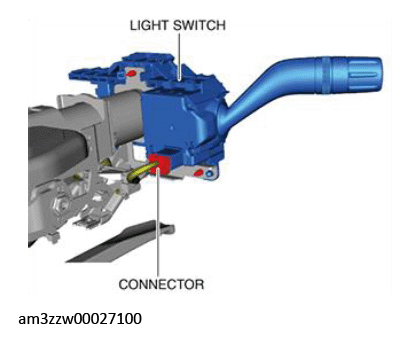

  7. Disconnect the connectors.
    G13179630Courtesy of MAZDA MOTORS CORP.

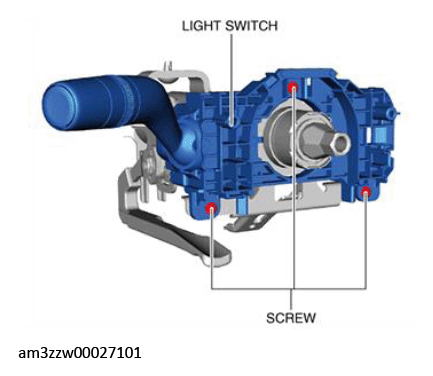

  8. Remove the screws.
    G13179631Courtesy of MAZDA MOTORS CORP.

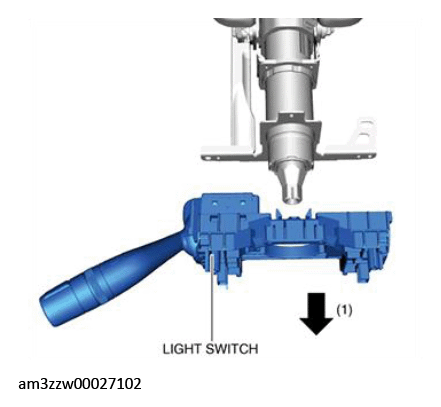

  9. While pull out the combination light in the direction of arrow (1) shown in the figure.
    G13179632Courtesy of MAZDA MOTORS CORP.
  10. Remove the light switch.
  11. Install in the reverse order of removal.
