Front Combination Light Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

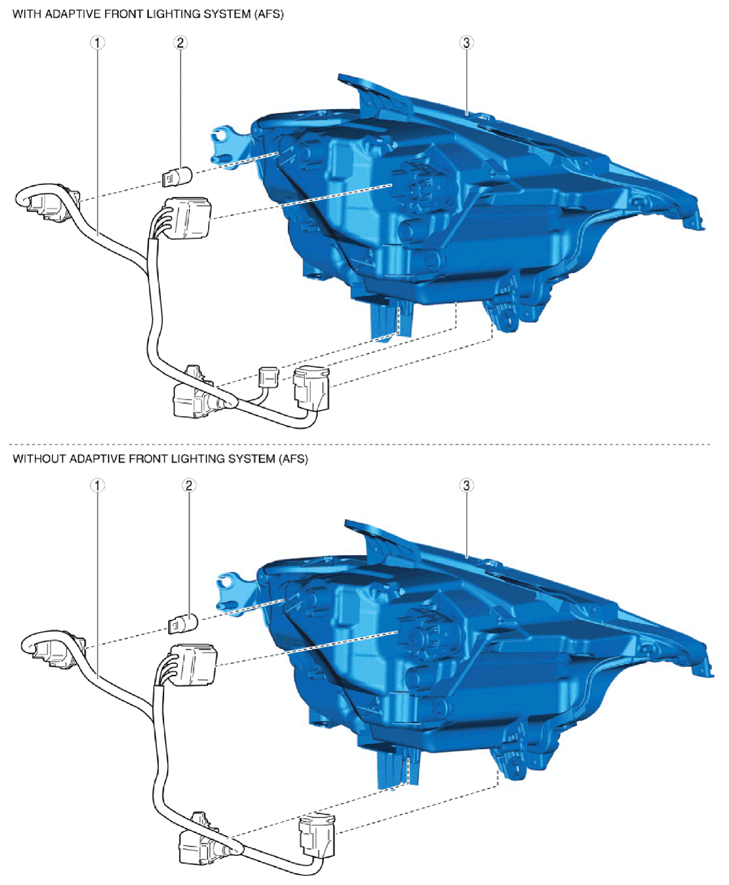

- Disassemble in the order shown in the figure.COMPONENT DESCRIPTION
1 Short cord
(See Short Cord Removal Note .)2 Front turn light bulb
(See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION .)3 Front combination light - Assemble in the reverse order of disassembly.
