Short Cord Removal Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

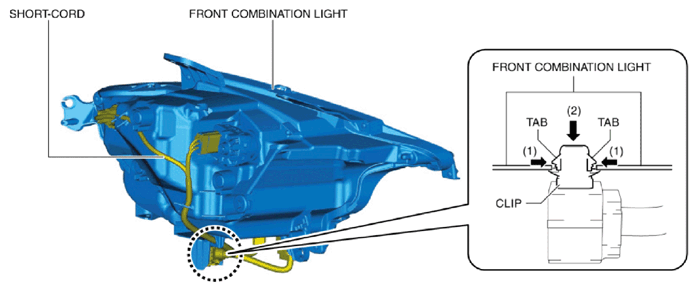

  1. While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach the clip tabs from the front combination light.
    Fig 1: Pressing Clip Tabs
    G10954722Courtesy of MAZDA MOTORS CORP.
  2. Pull the clip out of the front combination light and remove the short cord.
