Audio Unit Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Scuff plate (passenger's side) (See SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. A-pillar trim (passenger's side) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    4. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    5. Center panel No. 2 (See CENTER PANEL No. 2 REMOVAL/INSTALLATION .)
    6. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)

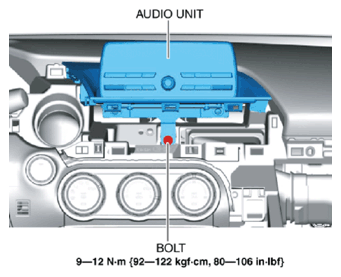

  3. Remove the bolt.
    Fig 1: Removing Bolt
    G10954908Courtesy of MAZDA MOTORS CORP.

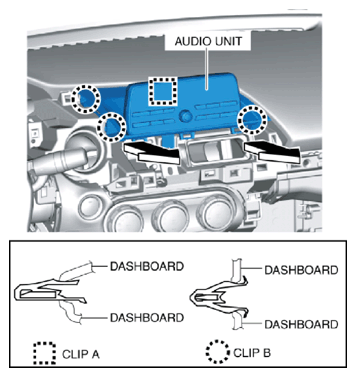

  4. Pull the audio unit in the direction of the arrows shown in the figure and detach the audio unit clips from the dashboard.
    Fig 2: Pulling Audio Unit
    G10954909Courtesy of MAZDA MOTORS CORP.

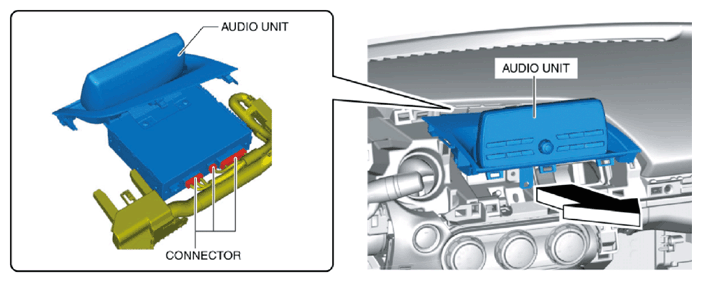

  5. Pull out the audio unit in the direction of the arrow shown in the figure and disconnect it.
    Fig 3: Pulling Out Audio Unit
    G10954910Courtesy of MAZDA MOTORS CORP.
  6. Remove the audio unit.
  7. Install in the reverse order of removal.
