Front Side Trim Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the scuff plate. (See SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.
  3. Remove the fastener.

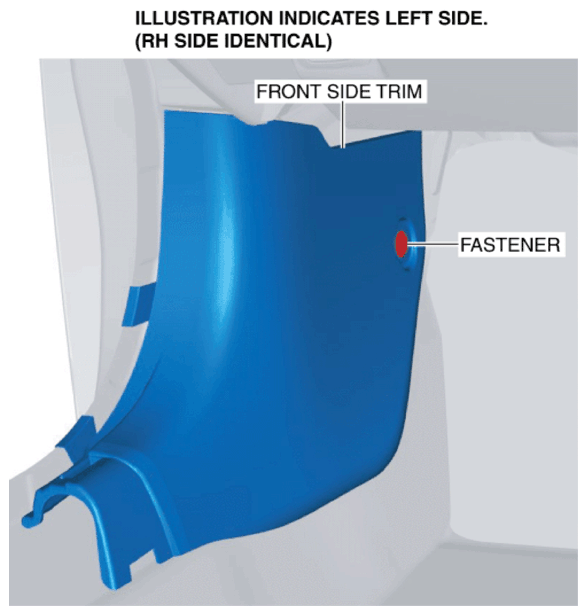

    Fig 1: Removing Front Side Trim Fastener
    G10954653Courtesy of MAZDA MOTORS CORP.
  4. Move the front side trim in the direction of the arrow shown in the figure and detach the clip from the body panel.

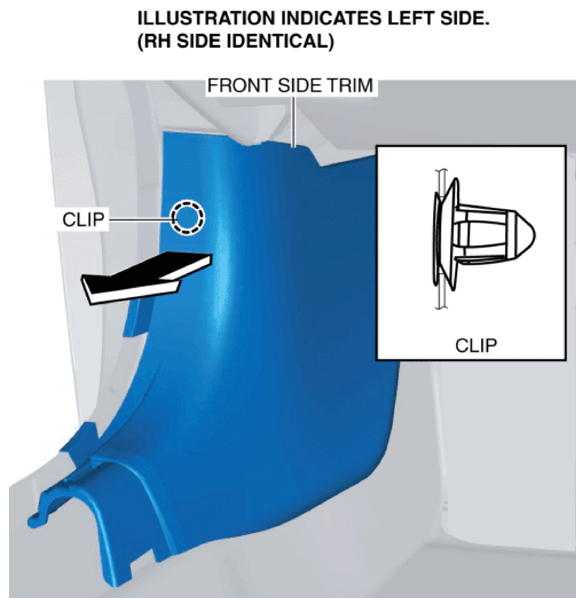

    Fig 2: Moving Front Side Trim
    G10954654Courtesy of MAZDA MOTORS CORP.
  5. Remove the front side trim.
  6. Install in the reverse order of removal.
