Door Trim Disassembly/Assembly: Notes

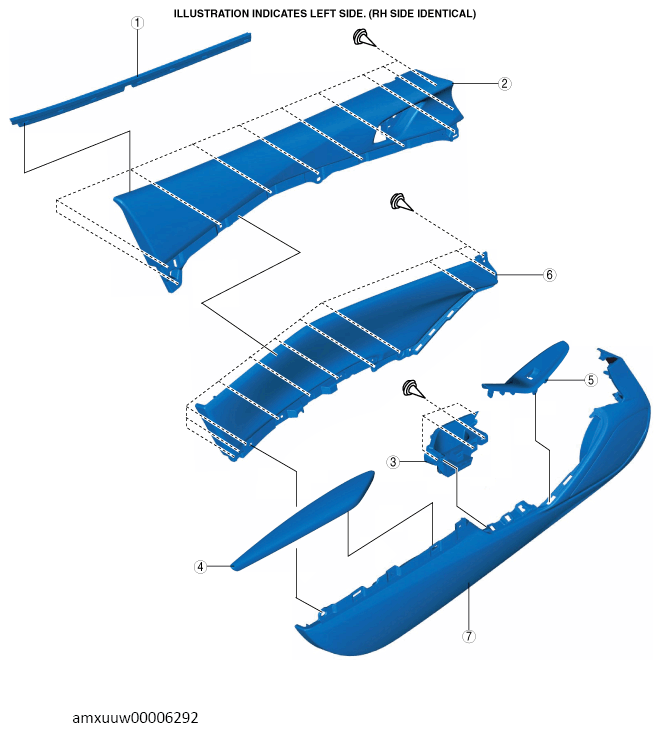

  1. Disassemble in the order indicated in the table.
    G13491261Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Weather strip
    2 Upper frame
    3 Recess
    4 Armrest
    5 Switch panel
    (See Switch Panel Removal Note .)
    6 Center frame
    7 Lower frame
  2. Remove the power window main switch when replacing the door trim (driver-side). (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
  3. Remove the power window subswitch when replacing the door trim (passenger-side). (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
  4. Assemble in the reverse order of disassembly.
