Door Trim Disassembly/Assembly
>>
Switch Panel Removal Note
Switch Panel Removal Note

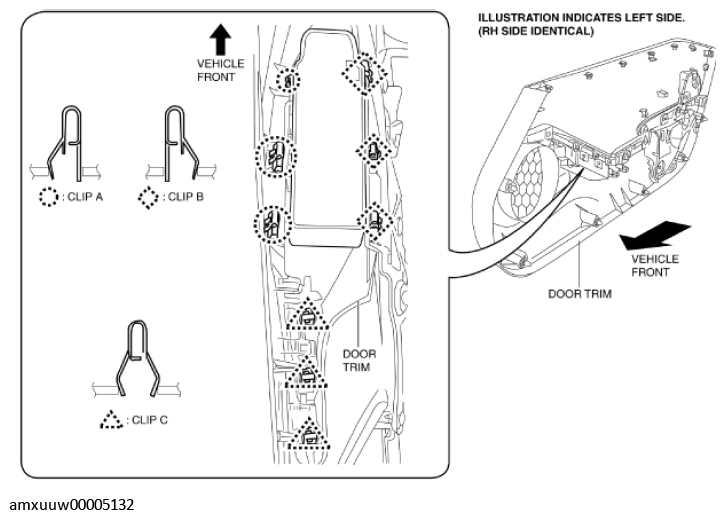

Detach clips A, B and C in the positions shown in the figure from the door trim.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
