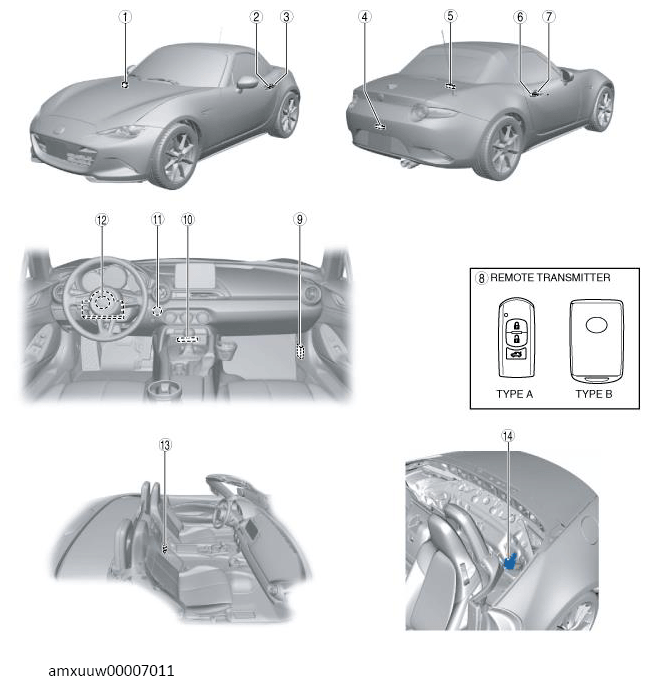

| 1 |
Keyless beeper
(See KEYLESS BEEPER REMOVAL/INSTALLATION .)
(See KEYLESS BEEPER INSPECTION .) |
| 2 |
Keyless antenna (exterior, LF)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION .) |
| 3 |
Request switch (LF)
(See REQUEST SWITCH REMOVAL/INSTALLATION .)
(See REQUEST SWITCH INSPECTION .) |
| 4 |
Keyless antenna (exterior, rear)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION .) |
| 5 |
Keyless antenna (interior, rear)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION .) |
| 6 |
Request switch (RF)
(See REQUEST SWITCH REMOVAL/INSTALLATION .)
(See REQUEST SWITCH INSPECTION .) |
| 7 |
Keyless antenna (exterior, RF)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION .) |
| 8 |
Remote transmitter
(See REMOTE TRANSMITTER DISASSEMBLY/ASSEMBLY .)
(See REMOTE TRANSMITTER ID CODE REGISTRATION .)
(See CLEARING REMOTE TRANSMITTER .)
(See REMOTE TRANSMITTER BATTERY VOLTAGE INSPECTION .) |
| 9 |
LF control unit
(See LF CONTROL UNIT REMOVAL/INSTALLATION .)
(See LF CONTROL UNIT INSPECTION .) |
| 10 |
Keyless antenna (interior, front)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION .) |
| 11 |
Push button start
(See PUSH BUTTON START REMOVAL/INSTALLATION .)
(See PUSH BUTTON START INSPECTION .) |
| 12 |
Start stop unit
(See START STOP UNIT REMOVAL/INSTALLATION .)
(See START STOP UNIT INSPECTION .)
(See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA) .)
(See SECURITY AND LOCKS PERSONALIZATION FEATURES SETTING PROCEDURE .)
(See DOOR LOCK SYSTEM OPERATION RECORD .)
(See THEFT-DETERRENT SYSTEM OPERATION RECORD .) |
| 13 |
Keyless antenna (interior, center)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION .) |
| 14 |
Keyless receiver
(See KEYLESS RECEIVER REMOVAL/INSTALLATION .)
(See KEYLESS RECEIVER INSPECTION .) |
