Keyless Receiver Removal/Installation

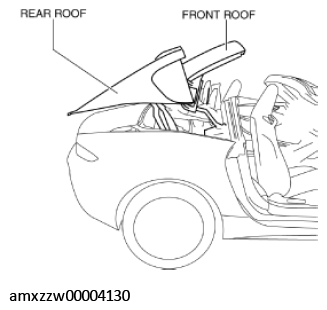

  1. Using the retractable hardtop switch, keep the rear roof open.
    G11274845Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION .)
    2. Seat (LH) (See SEAT REMOVAL/INSTALLATION .)
    3. Scuff plate (LH) (See SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    5. Side shelf (LH) (See SIDE SHELF REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

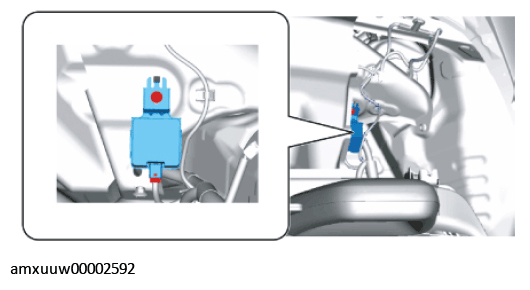

    Fig 1: Keyless Receiver, Connector And Bolt With Torque Specification
    G11273527Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolt.
  6. Remove the keyless receiver.
  7. Install in the reverse order of removal.
