Interior Trim Location Index

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

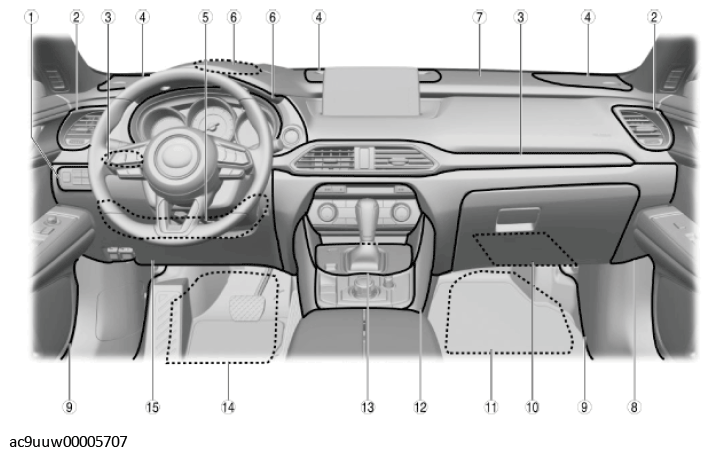

Fig 1: Interior Trim Related Components (1 Of 3)
G11434957Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Cluster switch
(See CLUSTER SWITCH REMOVAL/INSTALLATION .)
2 Ventilator grille
(See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
3 Decoration panel
(See DECORATION PANEL REMOVAL/INSTALLATION .)
4 Speaker grille
(See SPEAKER GRILLE REMOVAL/INSTALLATION .)
5 Knee bolster
(See KNEE BOLSTER REMOVAL/INSTALLATION .)
6 Meter hood
(See METER HOOD REMOVAL/INSTALLATION .)
7 Dashboard
(See DASHBOARD REMOVAL )
(See DASHBOARD INSTALLATION .)
(See DASHBOARD DISASSEMBLY/ASSEMBLY .)
8 Passenger-side lower panel
(See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
9 Front side trim
(See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
10 Dashboard undercover
(See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
11 Foot support
(See FOOT SUPPORT REMOVAL/INSTALLATION .)
12 Front console
(See FRONT CONSOLE REMOVAL/INSTALLATION .)
(See FRONT CONSOLE DISASSEMBLY/ASSEMBLY .)
13 Shift panel
(See SHIFT PANEL REMOVAL/INSTALLATION .)
14 Heel cushion
(See HEEL CUSHION REMOVAL/INSTALLATION .)
15 Driver-side lower panel
(See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)

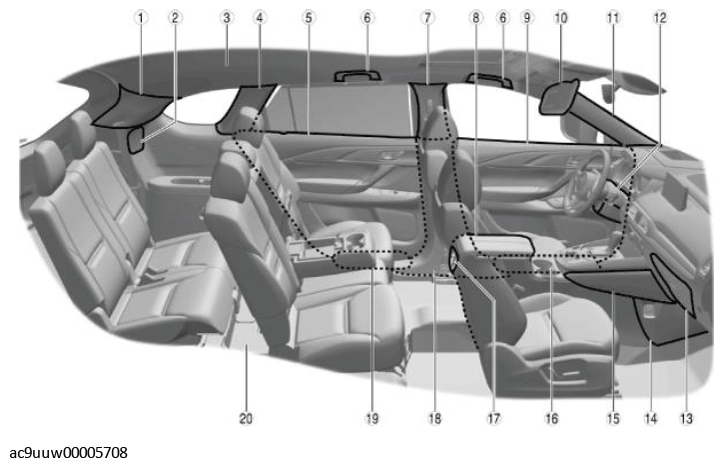

Fig 2: Interior Trim Related Components (2 Of 3)
G11434959Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 D-pillar trim
(See D-PILLAR TRIM REMOVAL/INSTALLATION .)
2 Speaker grille
(See SPEAKER GRILLE REMOVAL/INSTALLATION .)
3 Headliner
(See HEADLINER REMOVAL/INSTALLATION .)
4 C-pillar trim
(See C-PILLAR TRIM REMOVAL/INSTALLATION .)
5 Rear door trim
(See REAR DOOR TRIM REMOVAL/INSTALLATION .)
(See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY .)
6 Assist handle
(See ASSIST HANDLE REMOVAL/INSTALLATION .)
7 B-pillar upper trim
(See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
8 Rear console
(See REAR CONSOLE REMOVAL/INSTALLATION .)
(See REAR CONSOLE DISASSEMBLY/ASSEMBLY .)
9 Front door trim
(See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
(See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY .)
10 Sunvisor
(See SUNVISOR REMOVAL/INSTALLATION .)
11 A-pillar trim
(See A-PILLAR TRIM REMOVAL/INSTALLATION .)
12 Column cover
(See COLUMN COVER REMOVAL/INSTALLATION .)
13 Glove compartment
(See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
14 Side wall
(See SIDE WALL REMOVAL/INSTALLATION .)
15 Console side panel
(See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
16 Front scuff plate
(See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
17 Ventilator grille
(See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
18 B-pillar lower trim
(See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
19 Rear scuff plate
(See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
20 Floor covering
(See FLOOR COVERING REMOVAL/INSTALLATION .)

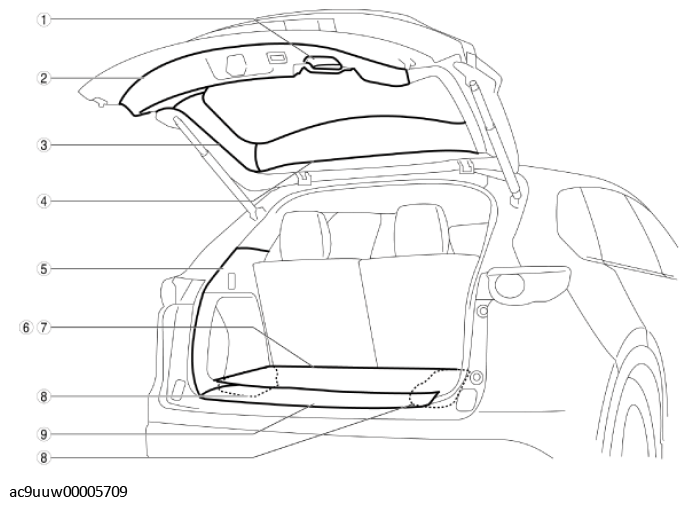

Fig 3: Interior Trim Related Components (3 Of 3)
G11434960Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Liftgate recess
(See LIFTGATE RECESS REMOVAL/INSTALLATION .)
2 Liftgate lower trim
(See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
3 Liftgate side trim
(See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
4 Liftgate upper trim
(See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
5 Trunk side trim
(See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
6 Trunk covering
(See TRUNK COVERING REMOVAL/INSTALLATION .)
7 Trunk board
(See TRUNK BOARD REMOVAL/INSTALLATION .)
8 Trunk side pocket
(See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
9 Trunk end trim
(See TRUNK END TRIM REMOVAL/INSTALLATION .)
