Front Door Trim Disassembly/Assembly

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

Driver-side

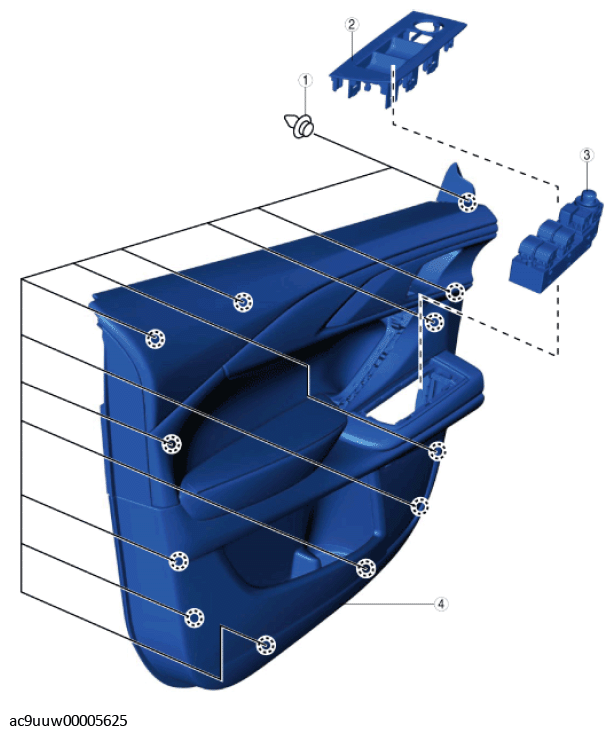

Fig 1: Switch Panel, Power Window Main Switch, Front Door Trim And Fastener - Driver-Side

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fastener
2	Switch panel
3	Power window main switch
4	Front door trim

Passenger-side

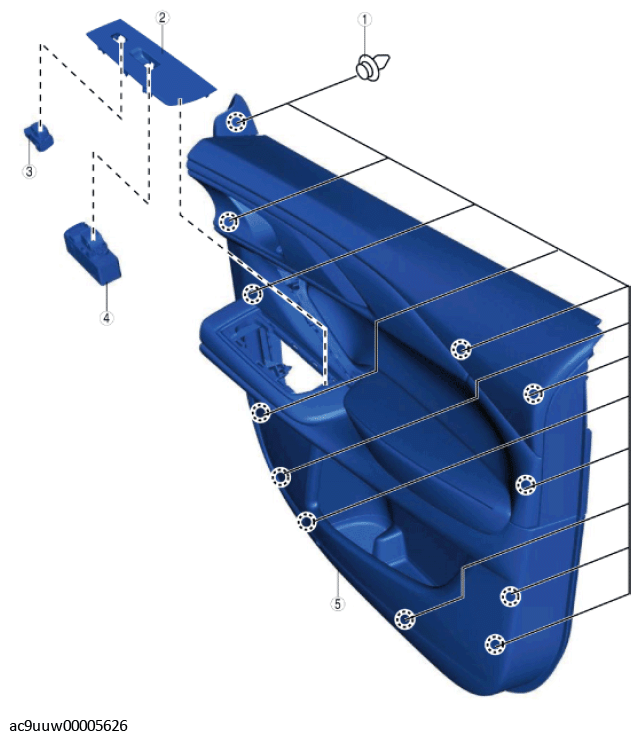

Fig 2: Switch Panel, Lock Switch, Power Window Subswitch, Front Door Trim And Fastener - Passenger-Side

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fastener
2	Switch panel
3	Lock switch
4	Power window subswitch
5	Front door trim

Assemble in the reverse order of disassembly.
