Ambient Temperature Sensor Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
  4. Remove the ambient temperature sensor. (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
  5. Measure the temperature around the ambient temperature sensor and measure the resistance between the ambient temperature sensor terminals A and B.
    G11433635Courtesy of MAZDA MOTORS CORP.

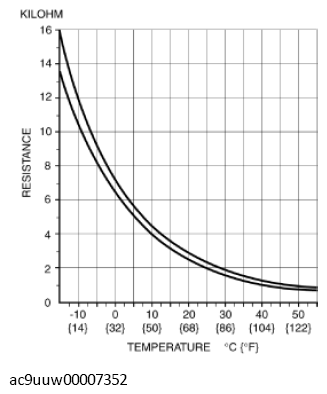

    G11433636Courtesy of MAZDA MOTORS CORP.
