Ambient Temperature Sensor Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)

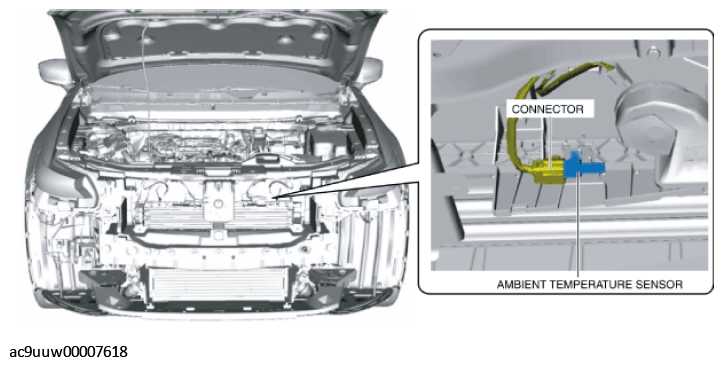

  4. Disconnect the connector.
    G11433637Courtesy of MAZDA MOTORS CORP.

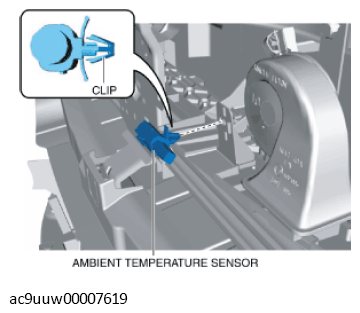

  5. Remove the clip.
    G11433638Courtesy of MAZDA MOTORS CORP.
  6. Remove the ambient temperature sensor.
  7. Install in the reverse order of removal.
