Rear Splash Shield Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

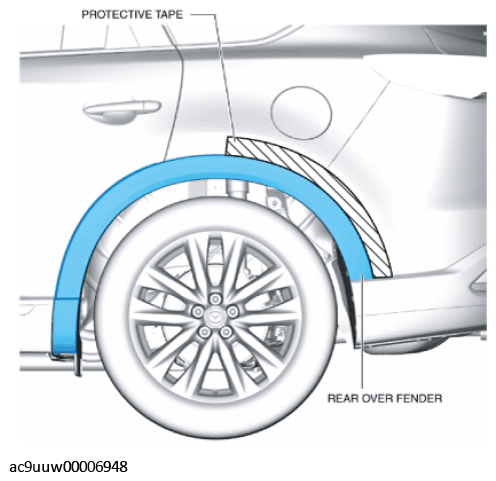

Affix the protective tape to the position shown in the figure to prevent scratches and damage.

Fig 1: Affixing Protective Tape To Position
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

Fig 2: Inserting Tape-Wrapped Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Move the flathead screwdriver in the direction of the arrows shown in the figure and remove the rear over fender fastener. (See REAR SPLASH SHIELD INSTALLATION NOTE .)
Remove the fastener.

Fig 3: Removing Rear Over Fender Fastener
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrow shown in the figure and detach the clips of the rear over fender from the rear bumper.

Fig 4: Detaching Rear Over Fender Clips
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrow shown in the figure and detach the clip of the rear over fender from the rear fender panel.

Fig 5: Moving Remover Tool
Courtesy of MAZDA MOTORS CORP.
Remove the screws and fasteners.

Fig 6: Removing Rear Splash Shield Screws And Fasteners
Courtesy of MAZDA MOTORS CORP.
Remove the cap nut.

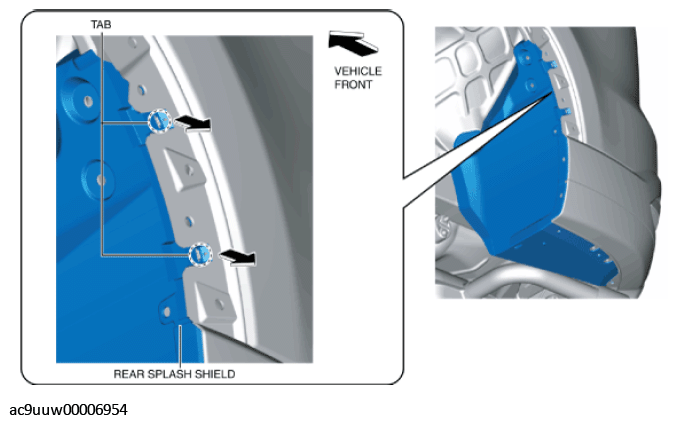

Pull the rear splash shield in the direction of the arrows shown in the figure and detach the rear splash shield tabs.

Fig 7: Pulling Rear Splash Shield
Courtesy of MAZDA MOTORS CORP.
Remove the rear splash shield.
Install in the reverse order of removal.
