Rear Splash Shield Installation Note

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Install the fastener with the arrow mark facing the outside of the vehicle.

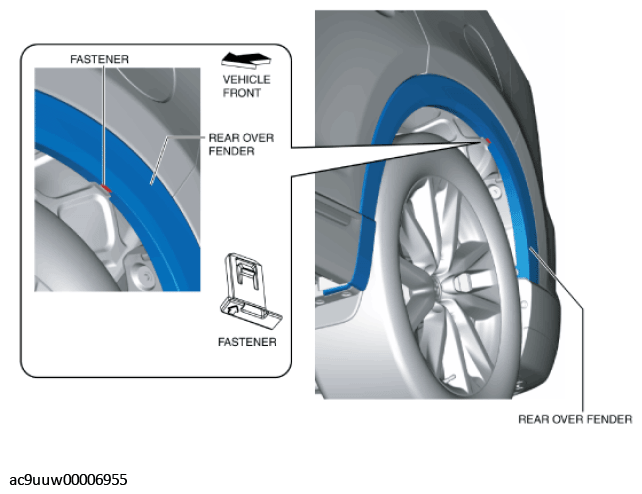

Fig 1: Installing Rear Over Fender Fastener
Courtesy of MAZDA MOTORS CORP.
