Driver-side second-row seat

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Second-row seat (driver's side) (See SECOND-ROW SEAT REMOVAL/INSTALLATION .)
    2. Second-row seat cushion (See SECOND-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    3. Second-row seat side cover (See SECOND-ROW SEAT SIDE COVER REMOVAL/INSTALLATION .)
    4. Lower anchor installation bolt on the second-row center seat belt (See SECOND-ROW CENTER SEAT BELT REMOVAL/INSTALLATION .)
    5. Second-row center buckle (See SECOND-ROW BUCKLE REMOVAL/INSTALLATION .)

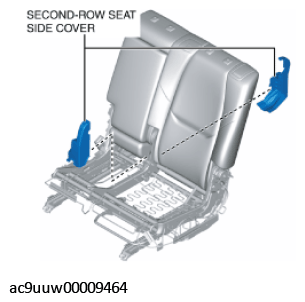

  3. Remove the second-row seat center cover.
    Fig 1: Second-Row Seat Side Cover
    G11432540Courtesy of MAZDA MOTORS CORP.

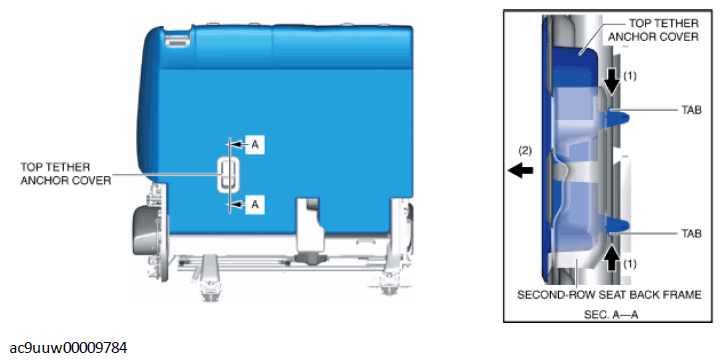

  4. While pressing the top tether anchor cover tabs in the direction of arrows (1) shown in the figure, move the top tether anchor cover in the direction of arrow (2) and detach the top tether anchor cover from the second-row seat back frame.
    Fig 2: Detaching Top Tether Anchor Cover From Second-Row Seat Back Frame
    G11432541Courtesy of MAZDA MOTORS CORP.

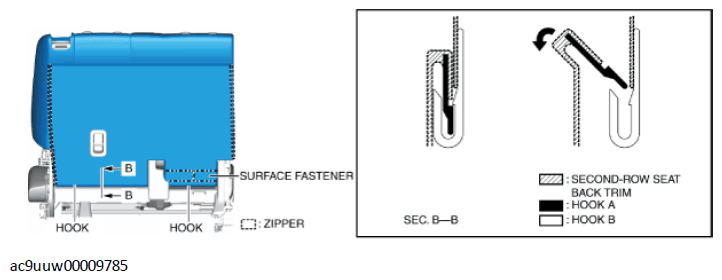

  5. Move hooks A in the direction of the arrow shown in the figure and detach them from hooks B.
    Fig 3: Detaching Hook A From Hook B
    G11432542Courtesy of MAZDA MOTORS CORP.
  6. Peel off the surface fastener shown in the figure.
  7. Unzip the zippers.

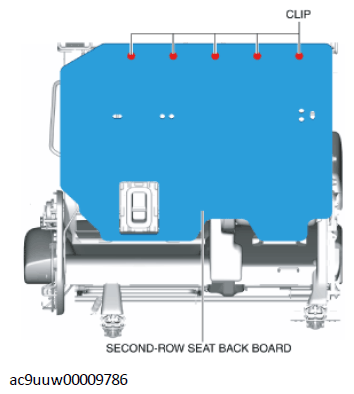

  8. Remove the clips.
    Fig 4: Second-Row Seat Back Board Clips
    G11432543Courtesy of MAZDA MOTORS CORP.
  9. Remove the second-row seat back board.

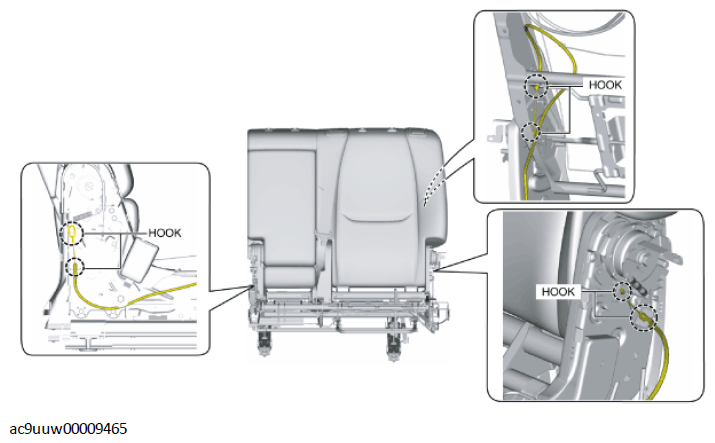

  10. Disconnect and unhook the cables.
    Fig 5: Second Row Seat Cable Hooks
    G11432544Courtesy of MAZDA MOTORS CORP.

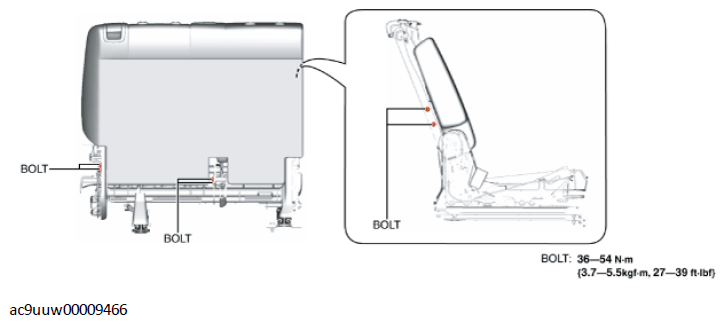

  11. Remove the bolts.
    Fig 6: Second Row Seat Bolts With Torque Specifications
    G11432545Courtesy of MAZDA MOTORS CORP.
  12. Remove the second-row seat back component.
  13. Install in the reverse order of removal.
