Front Fender Stay Removal/Installation: RH: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
2. Front bumper (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
4. Front bumper slider (See FRONT BUMPER SLIDER REMOVAL/INSTALLATION .)
5. Washer tank (See WASHER TANK REMOVAL/INSTALLATION .)

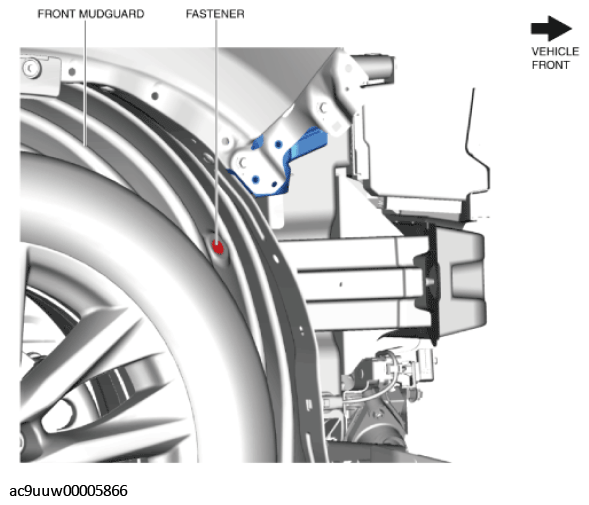

Remove the fastener.

Fig 1: Front Mudguard And Fastener
Courtesy of MAZDA MOTORS CORP.

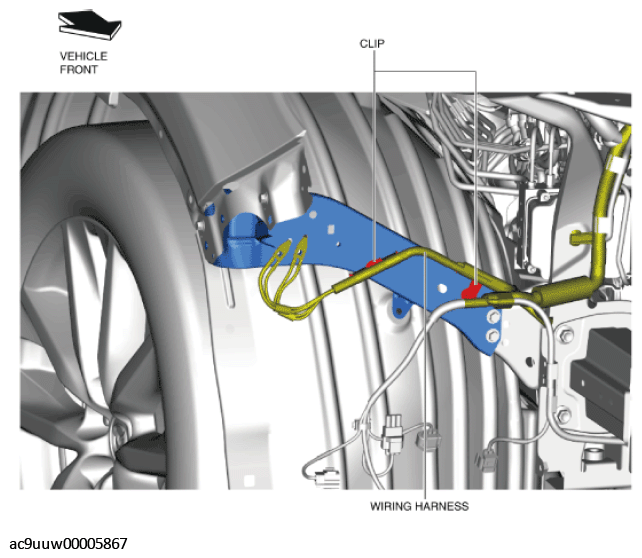

Remove the wiring harness clips.

Fig 2: Front Fender Stay Wiring Harness And Clips
Courtesy of MAZDA MOTORS CORP.

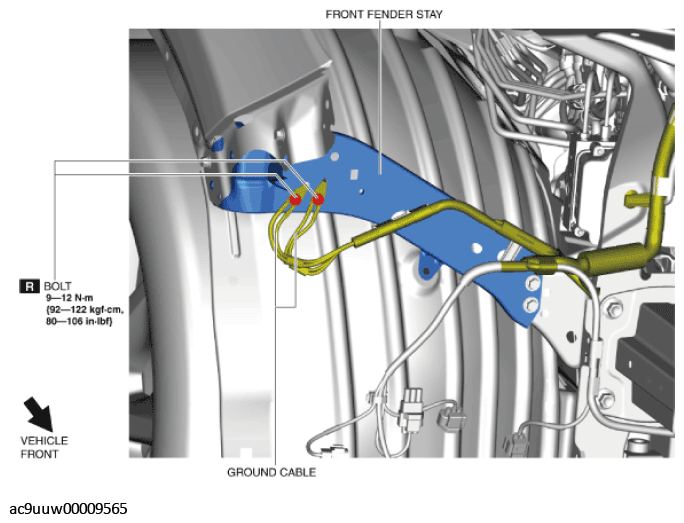

Remove the bolts and then remove the ground cables.

Fig 3: Front Fender Stay, Ground Cables And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

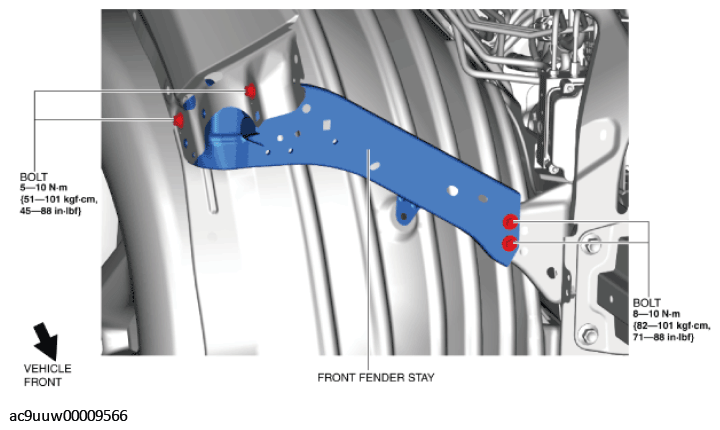

Remove the bolts.

Fig 4: Front Fender Stay And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the front fender stay.
Install in the reverse order of removal. (See FRONT FENDER STAY PAINT NOTE .)
