Liftgate Side Trim Removal/Installation: Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

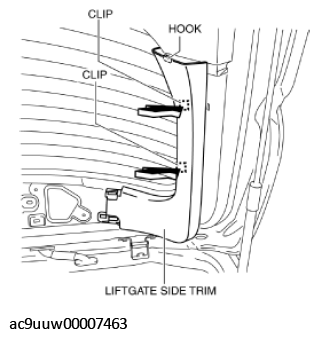

  1. Align the fastener and the hook of the liftgate side trim, press the liftgate side trim in the direction of the arrow shown in the figure, and install the clips to the liftgate.
    Fig 1: Pressing Liftgate Side Trim
    G11434974Courtesy of MAZDA MOTORS CORP.

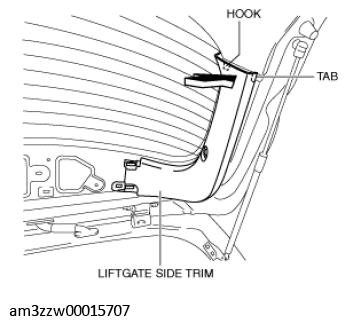

  2. Press the liftgate side trim in the direction of the arrow shown in the figure and install the hook and the tab to the liftgate lower trim.
    Fig 2: Installing Hook And Tab To Liftgate Lower Trim
    G11434561Courtesy of MAZDA MOTORS CORP.

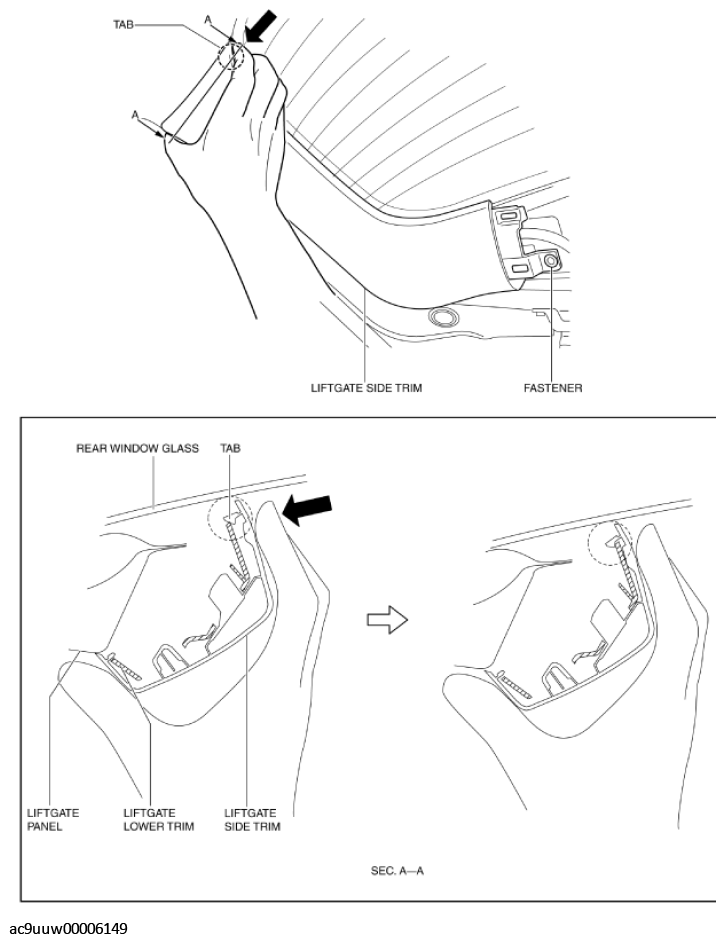

  3. Press the liftgate side trim in the direction of the arrow shown in the figure and install the tab to the liftgate lower trim.
    Fig 3: Pressing Liftgate Side Trim
    G11434976Courtesy of MAZDA MOTORS CORP.
  4. Install the fastener.
  5. Install the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
