Liftgate Upper Trim Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Take the shaded area shown in the figure, detach tab while pulling the liftgate upper trim in the direction of the arrow (1) shown in the figure, then detach clip A, clips B, tab, and pin while pulling in the direction of the arrow (2).

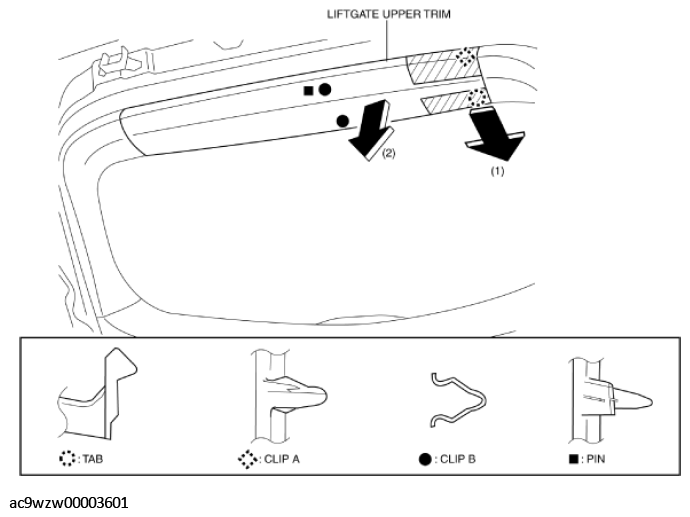

    Fig 1: Pulling Liftgate Upper Trim
    G11434977Courtesy of MAZDA MOTORS CORP.
  2. Take the shaded area shown in the figure, detach tab while pulling the liftgate upper trim in the direction of the arrow (1) shown in the figure, then detach the clip A, clip B, and tab while pulling in the direction of the arrow (2).

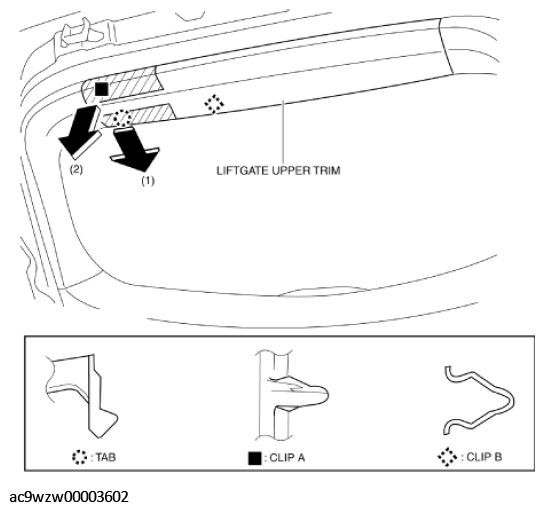

    Fig 2: Detaching Tab And Clips
    G11434978Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
