Active Air Shutter Removal/Installation

CAUTION:
  • If the active air shutter is disassembled and re-assembled, it may not operate normally. Do not disassemble the active air shutter because it is not designed to be disassembled.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
    3. Set plate (See SET PLATE REMOVAL/INSTALLATION .)
    4. Radar unit (See RADAR UNIT REMOVAL/INSTALLATION .)
    5. Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION .)

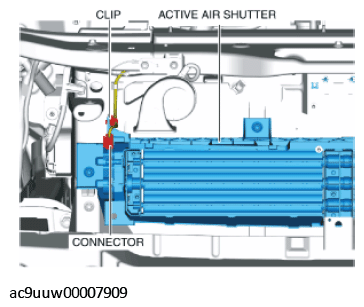

  3. Disconnect the connector.
    G11430700Courtesy of MAZDA MOTORS CORP.
  4. Remove the clip.

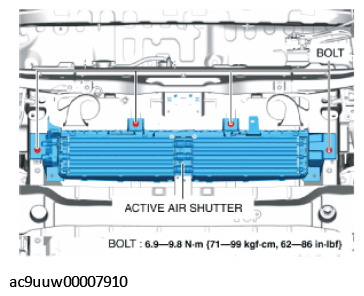

  5. Remove the bolts.
    Fig 1: Active Air Shutter Bolts With Torque Specification
    G11430701Courtesy of MAZDA MOTORS CORP.

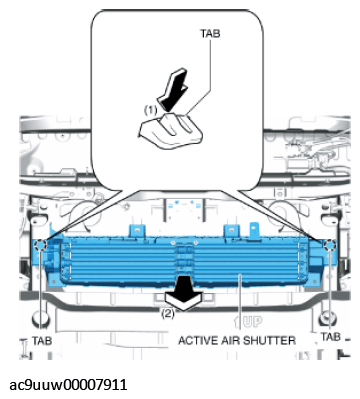

  6. Press the tabs in the direction of arrow (1) shown in the figure and detach the tabs from the shroud panel.
    G11430702Courtesy of MAZDA MOTORS CORP.
  7. Remove the active air shutter in the direction of arrow (2) shown in the figure.
  8. Install in the reverse order of removal.
