Side Turn Light Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Outer mirror glass (See OUTER MIRROR GLASS REMOVAL .)
    2. Upper outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .)
    3. Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION .)
  3. Apply battery voltage to side turn light terminal A, and connect terminal B to ground.

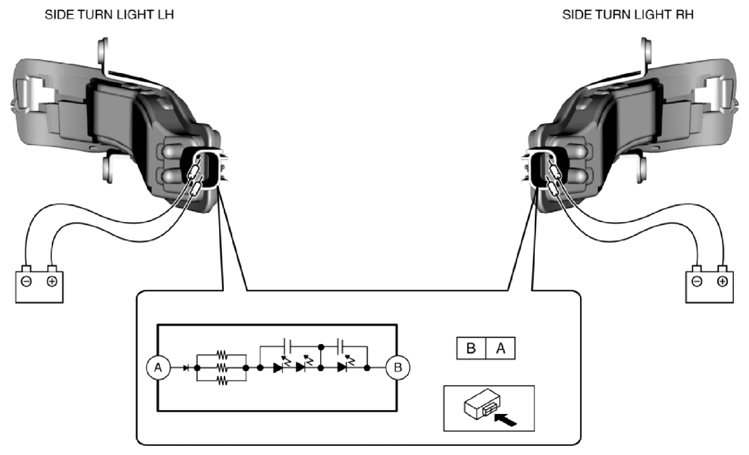

    Fig 1: Applying Battery Voltage To Side Turn Light Terminal A
    G10939214Courtesy of MAZDA MOTORS CORP.
  4. Verify that the LED illuminates.
    • If the LED illuminates, go to the next step.
    • If the LED does not illuminate, replace the side turn light.
  5. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Power outer mirror connector (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
  6. Verify that the continuity between the side turn light terminals from the power outer mirror is as indicated in the chart.

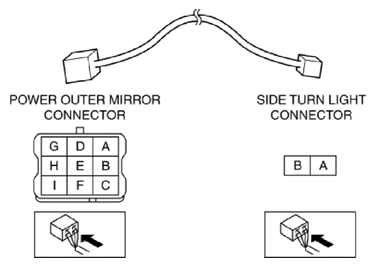

Fig 2: Identifying Side Turn Light Connector Terminals
G10939215Courtesy of MAZDA MOTORS CORP.
Fig 3: Side Turn Light Terminals Continuity Chart
G10939216Courtesy of MAZDA MOTORS CORP.
