Side Turn Light Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Outer mirror glass (See OUTER MIRROR GLASS REMOVAL .)
    2. Upper outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .)
  3. Remove the screws.

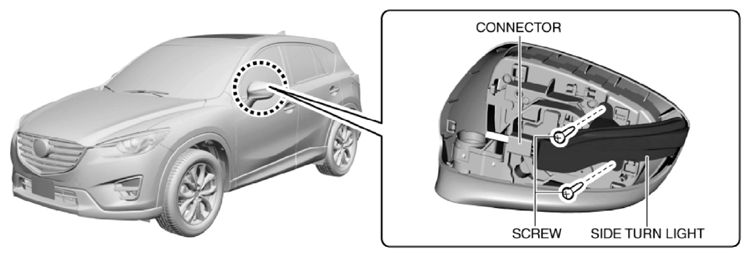

    Fig 1: Removing Screws
    G10939212Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the side turn light.

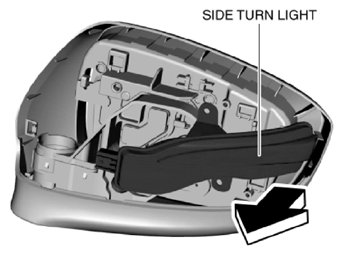

    Fig 2: Removing Side Turn Light
    G10939213Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
