Liftgate Opener Switch Inspection
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
- Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
- Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
- Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION .)
- Liftgate opener switch (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION .)

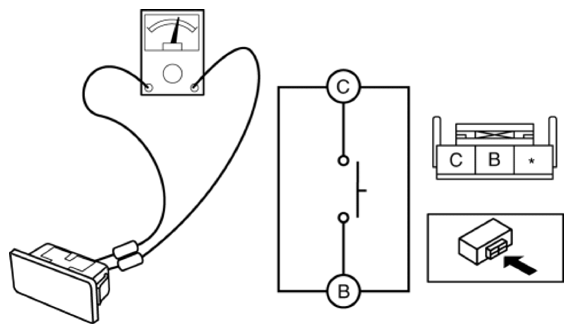

- Verify the continuity of liftgate opener switch terminals B and C.

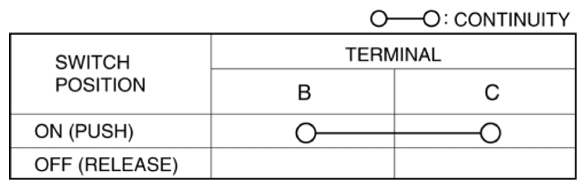

- If not as indicated in the chart, replace the liftgate opener switch.
