Shift Panel Removal/Installation: ATX

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
  3. Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

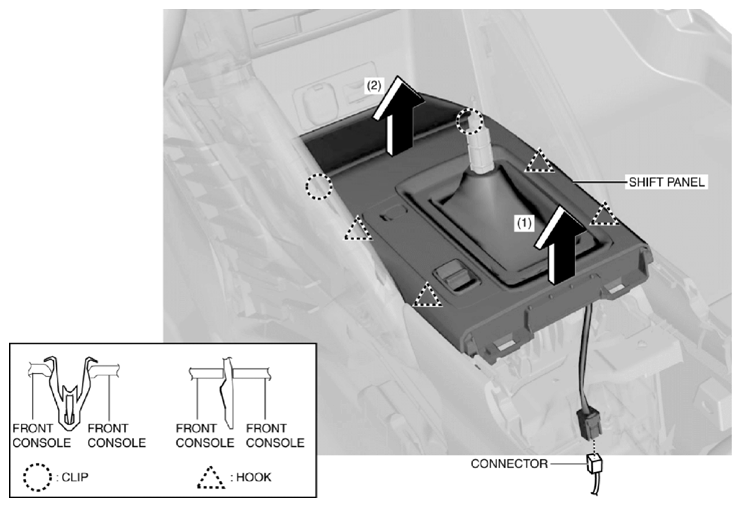

    Fig 1: Disconnecting Connector
    G10939057Courtesy of MAZDA MOTORS CORP.
  5. Move the shift panel in the order of arrows (1) and (2) shown in the figure, and detach the clips and hooks from the front console.
  6. Move the shift panel in the direction of the arrow shown in the figure and remove it while detaching the guides.

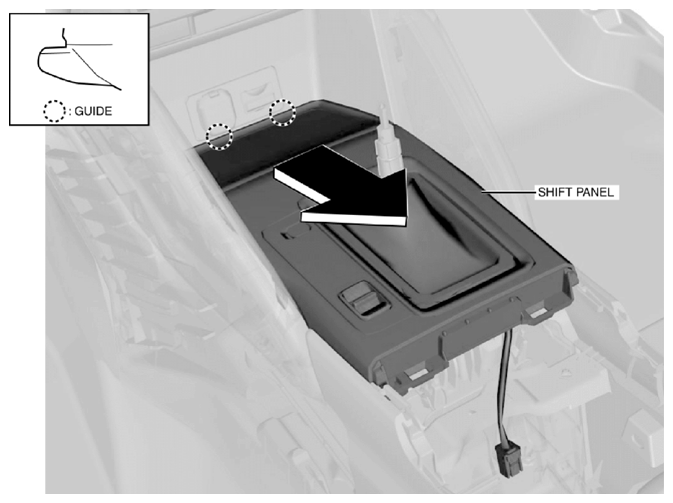

    Fig 2: Moving Shift Panel
    G10939058Courtesy of MAZDA MOTORS CORP.
  7. When removing the console mat, detach the hooks from the shift panel.

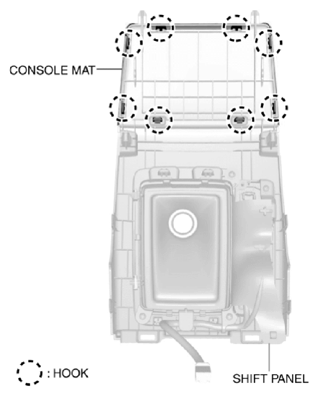

    Fig 3: Detaching Hooks From Shift Panel
    G10939059Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
