Upper Panel Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Open the console lid.

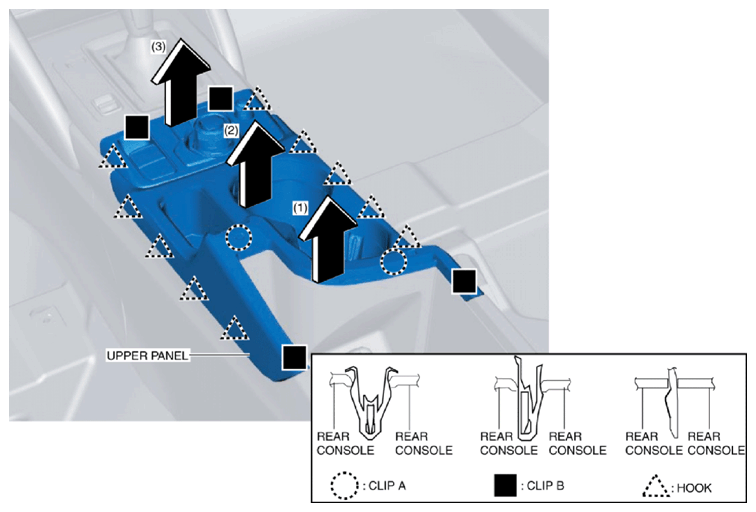

  3. Move the upper panel in the order of arrows (1), (2), and (3) shown in the figure, and detach clips A and B, and the hooks.
    Fig 1: Moving Upper Panel
    G10939054Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the commander switch connector. (With center display)
  5. Disconnect the electric parking brake (EPB) switch connector.

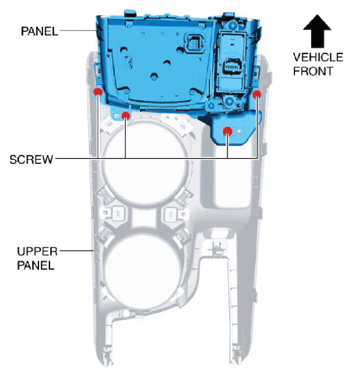

  6. Remove screws.
    Fig 2: Removing Screws
    G10939055Courtesy of MAZDA MOTORS CORP.

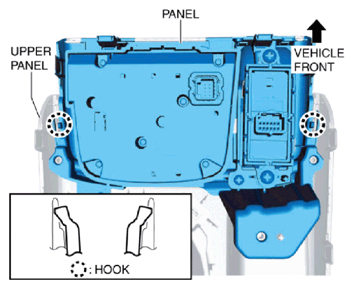

  7. Remove hooks from the upper panel.
    Fig 3: Removing Hooks From Upper Panel
    G10939056Courtesy of MAZDA MOTORS CORP.
  8. Remove the panel from the upper panel.
  9. Remove the commander switch when replacing the panel. (With center display) (See COMMANDER SWITCH REMOVAL/INSTALLATION .)
  10. Remove the electric parking brake (EPB) switch when replacing the panel. (With center display) (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION .)
  11. Install in the reverse order of removal.
