Rear Console Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    2. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    3. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
  3. Remove the caps and the screws.

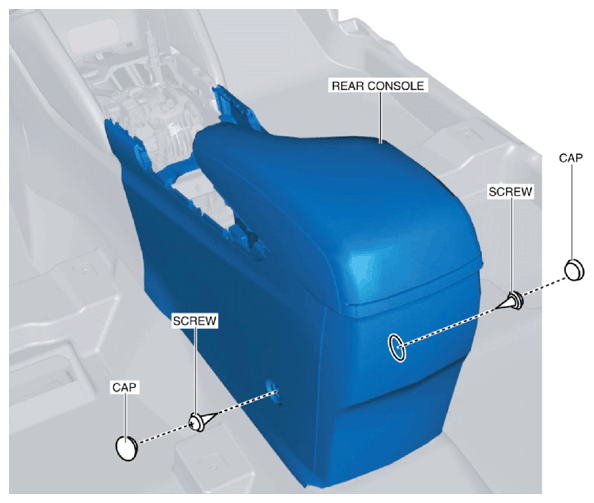

    Fig 1: Removing Caps And Screws
    G10939063Courtesy of MAZDA MOTORS CORP.
  4. Remove the wiring harness clips.
  5. Move the rear console in the direction of the arrow shown in the figure and detach the clips and guides from the front console.

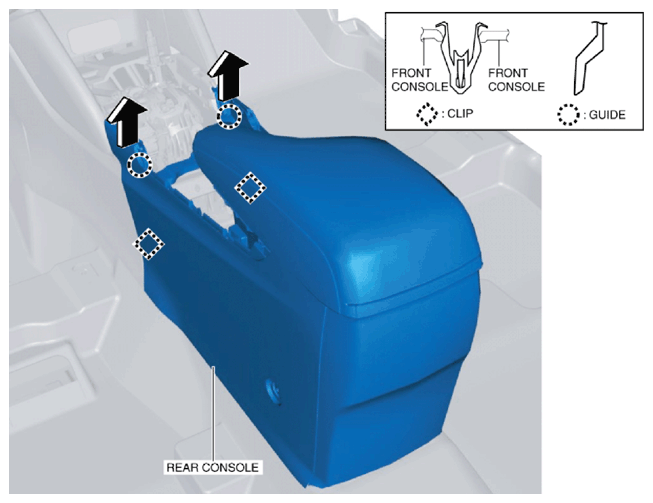

    Fig 2: Moving Rear Console
    G10939064Courtesy of MAZDA MOTORS CORP.
  6. Remove the wiring harness clips from the rear console.

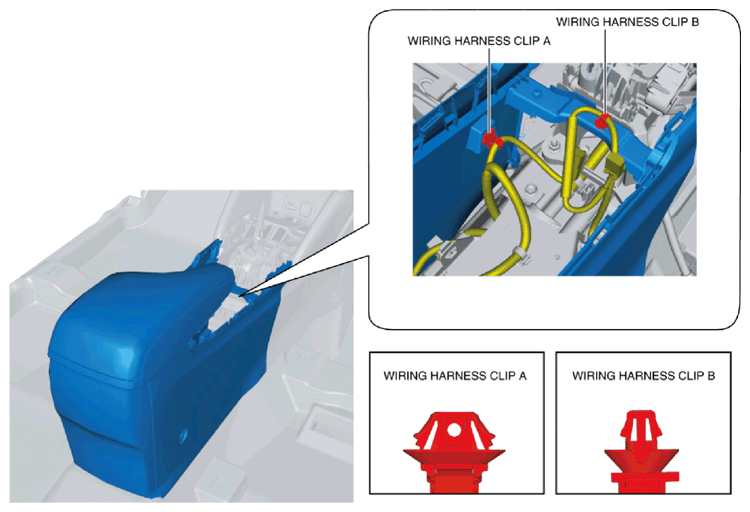

    Fig 3: Removing Wiring Harness Clips From Rear Console
    G10939065Courtesy of MAZDA MOTORS CORP.
  7. Remove the rear console in the direction of the arrow shown in the figure.

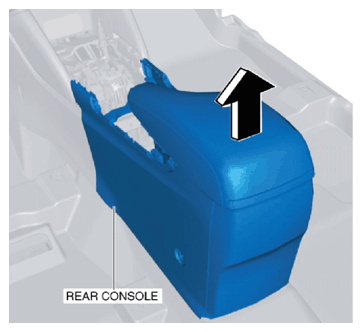

    Fig 4: Removing Rear Console
    G10939066Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
