Shift Panel Removal/Installation: ATX

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    2. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
    3. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
  3. Disconnect the connector.
    Fig 1: Shift Panel And Connector
    G11428018Courtesy of MAZDA MOTORS CORP.
  4. Using a remover tool, move the shift panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and detach the clips and hooks.
    Fig 2: Moving Shift Panel Using Remover Tool
    G11428019Courtesy of MAZDA MOTORS CORP.
  5. Move the shift panel in the direction of the arrow shown in the figure and remove it while detaching the guides.
    Fig 3: Removing Shift Panel
    G11428020Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • When replacing the shift panel, press the tabs in the order of arrows (1) and (2) shown in the figure and remove the console mat.

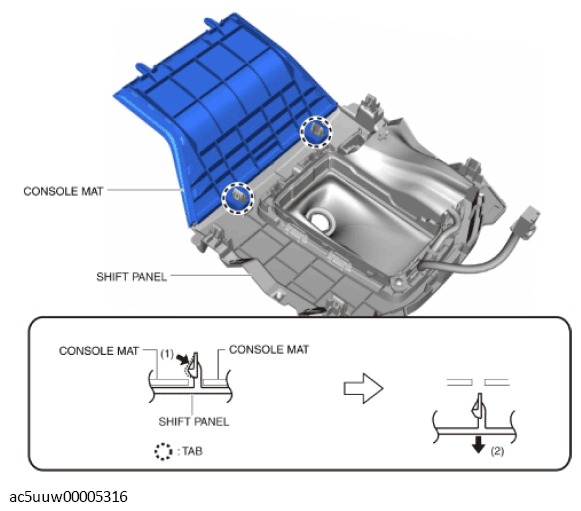

    Fig 4: Pressing Shift Panel Tabs
    G11428021Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
