Console Side Panel Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

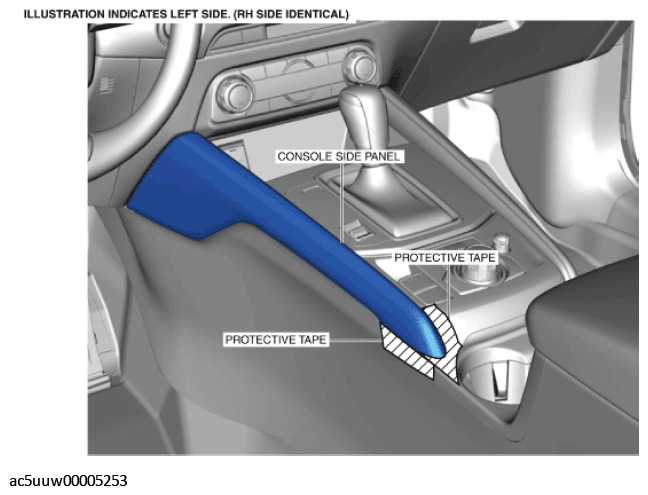

To prevent scratches or damage, apply protective tape to the positions shown in the figure.

Fig 1: Console Side Panel And Protective Tape
Courtesy of MAZDA MOTORS CORP.

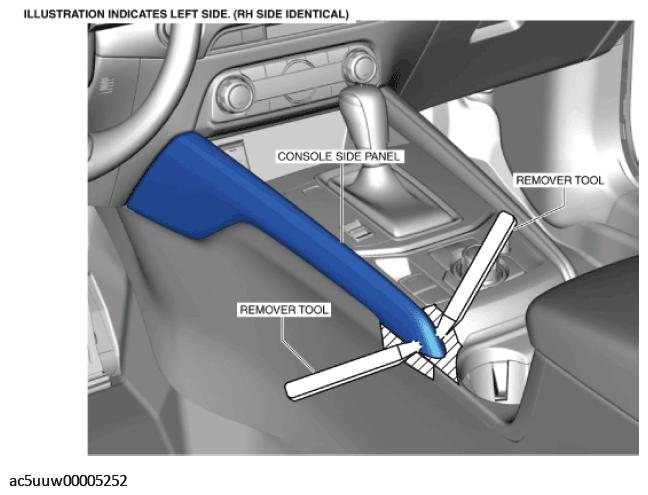

Insert the remover tools into the positions shown in the figure.

Fig 2: Inserting Remover Tool Into Console Side Panel
Courtesy of MAZDA MOTORS CORP.

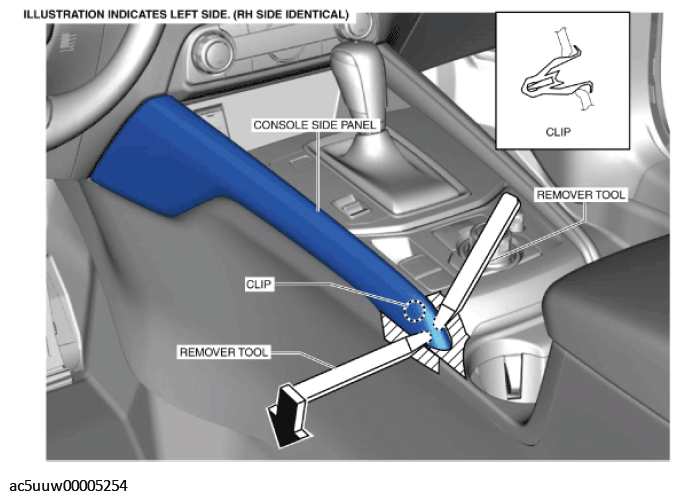

Move the remover tools in the direction of the arrow shown in the figure, and detach the clip.

Fig 3: Detaching Console Side Panel Clip Using Remover Tool
Courtesy of MAZDA MOTORS CORP.

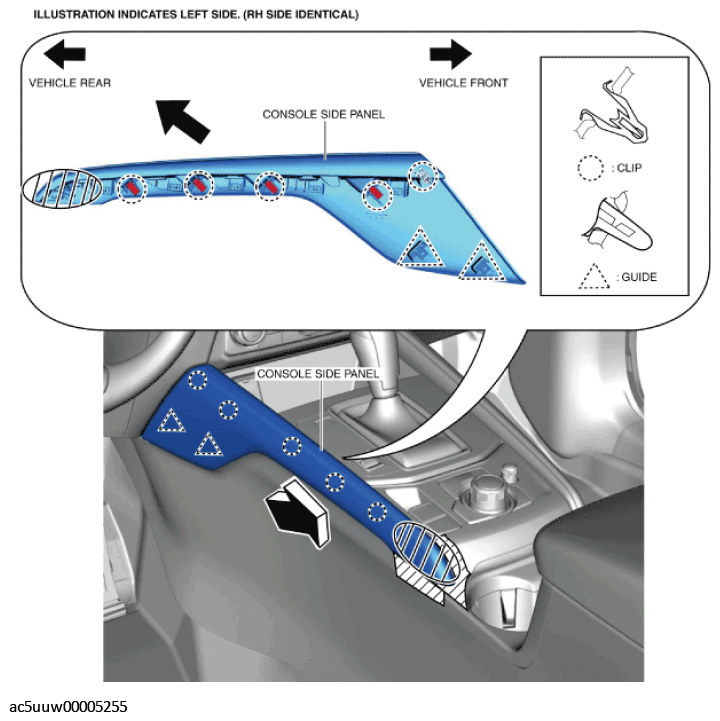

Hold the shaded area shown in the figure, move the console side panel in the direction of the arrow, and remove it while detaching the clips and guides.

Fig 4: Removing Console Side Panel
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
