Rear Console Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    2. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
    3. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    4. Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
    5. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    6. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    7. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    8. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
  3. Using a remover tool, detach the clips in the order of arrows (1) and (2) shown in the figure.

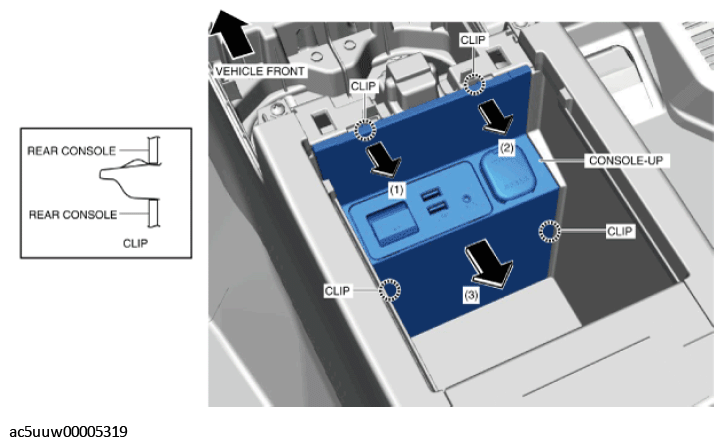

    Fig 1: Detaching Rear Console Clips Using Remover Tool
    G11428001Courtesy of MAZDA MOTORS CORP.
  4. Move the console-up in the direction of arrow (3) shown in the figure and detach the clips.
  5. Disconnect the connectors.

    With center display

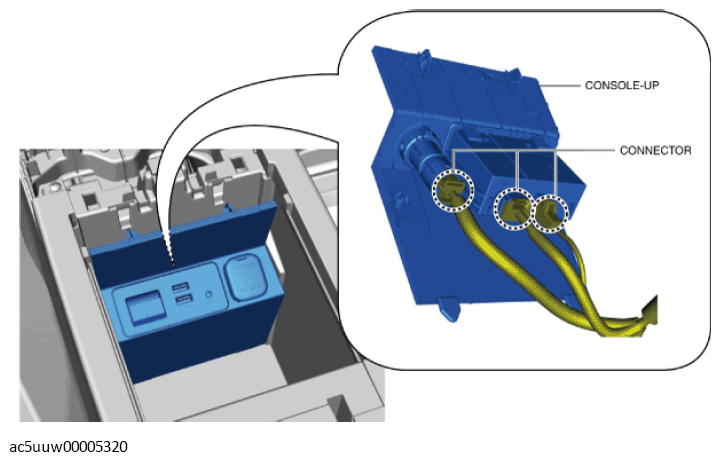

    Fig 2: CONSOLE-UP And Connectors (With Center Display)
    G11428002Courtesy of MAZDA MOTORS CORP.

    Without center display

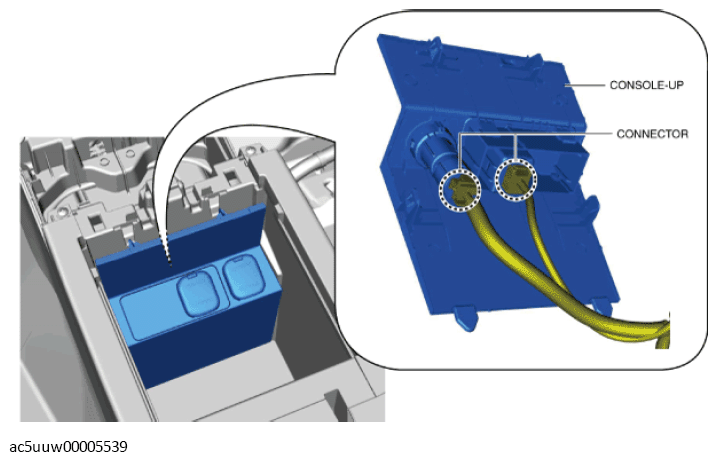

    Fig 3: CONSOLE-UP And Connectors (Without Center Display)
    G11428003Courtesy of MAZDA MOTORS CORP.
  6. Move the console-up in the direction of the arrow shown in the figure, detach the guides from the rear console, and remove the console-up.

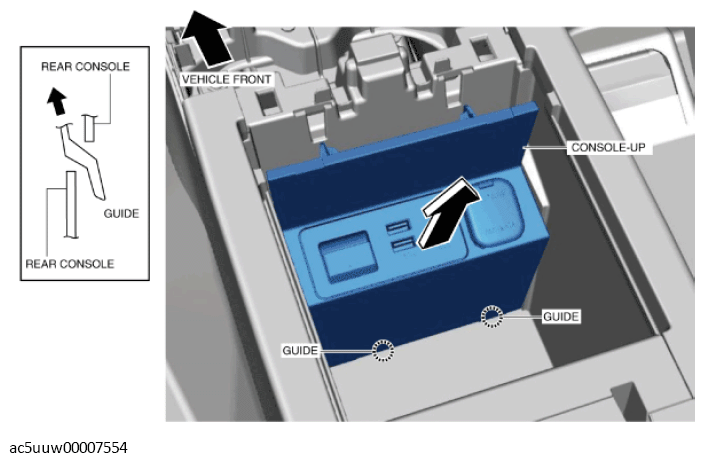

    Fig 4: Removing CONSOLE-UP
    G11428004Courtesy of MAZDA MOTORS CORP.
  7. Close the console lid.

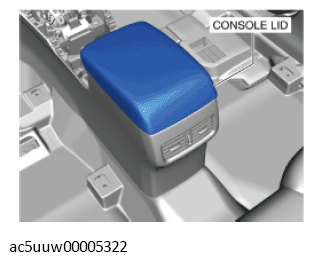

    Fig 5: Console Lid
    G11428005Courtesy of MAZDA MOTORS CORP.
  8. Insert the remover tool into the position shown in the figure, move it in the direction of the arrows, and detach the clips.

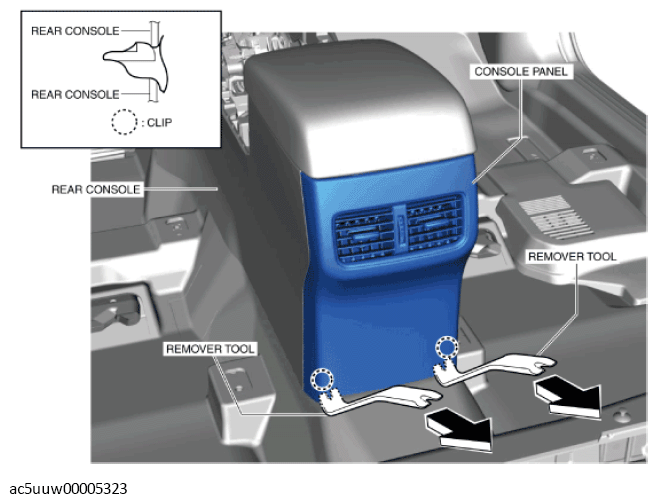

    Fig 6: Detaching Console Panel Clips Using Remover Tool
    G11428006Courtesy of MAZDA MOTORS CORP.
  9. Move the console panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and detach the clips.

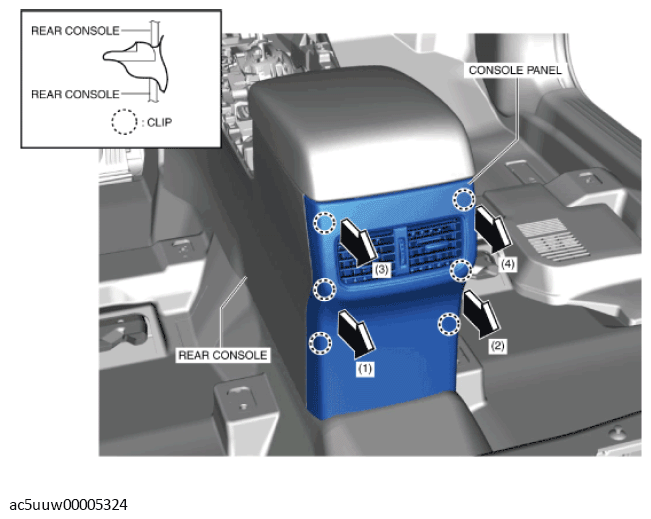

    Fig 7: Moving Console Panel
    G11428007Courtesy of MAZDA MOTORS CORP.
  10. Remove the console panel from the rear console.
  11. Remove bolts A and bolts B.

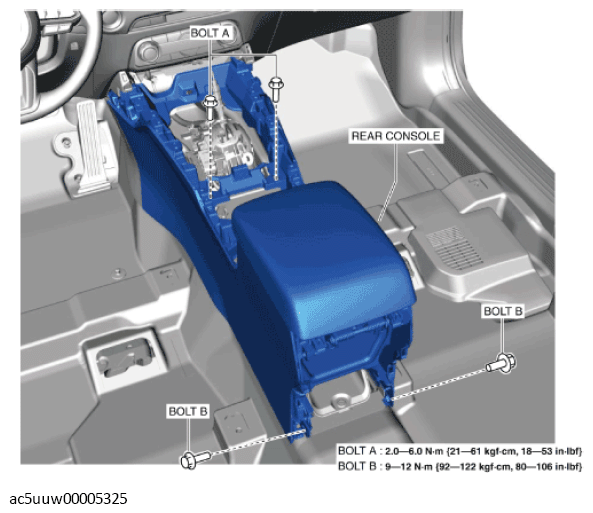

    Fig 8: Rear Console And Bolts
    G11428008Courtesy of MAZDA MOTORS CORP.
  12. Move the rear console in the direction of the arrows shown in the figure, detach the clips and guides from the center lower panel, and remove the rear console.

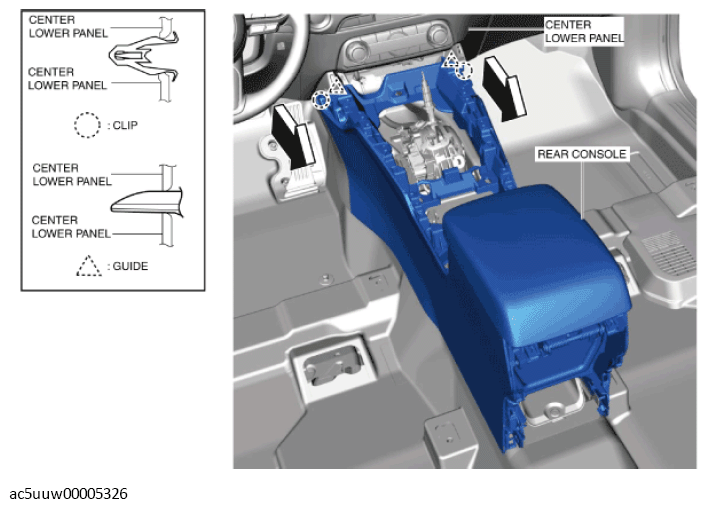

    Fig 9: Removing Rear Console
    G11428009Courtesy of MAZDA MOTORS CORP.
  13. Install in the reverse order of removal.
