Rear Seat Warmer Control Unit Removal/Installation
- Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Fold the rear seat back.
- Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION .)
- Remove the sub-trunk. (See SUB-TRUNK REMOVAL/INSTALLATION )

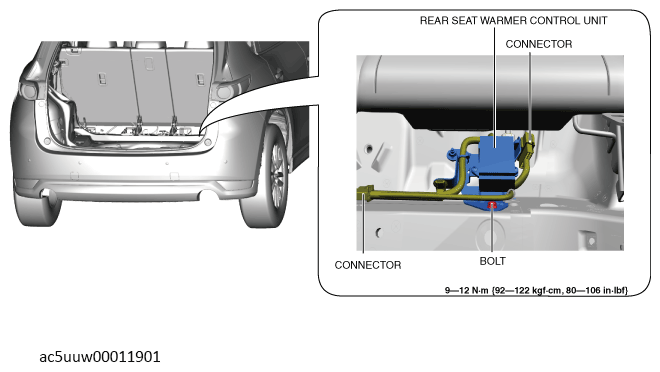

- Disconnect the rear seat warmer control unit connector.
- Remove the bolt.
- Remove the rear seat warmer control unit.
- Install in the reverse order of removal.
