Sub-Trunk Removal/Installation

  1. Disconnect the negative battery terminal. (With Bose®) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION .)
  3. Remove the bass-box. (With Bose®) (See BASS-BOX REMOVAL/INSTALLATION .)

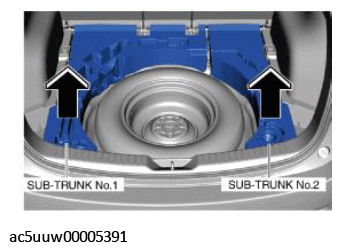

  4. Remove sub-trunks No. 1 and No. 2 in the direction of the arrows shown in the figure.
    G11428033Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
