Bass-Box Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION .)
  3. Remove the bolt.

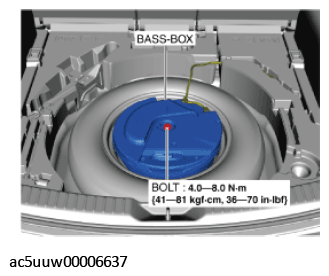

    Fig 1: Bass-Box Bolt With Torque Specification
    G11426050Courtesy of MAZDA MOTORS CORP.

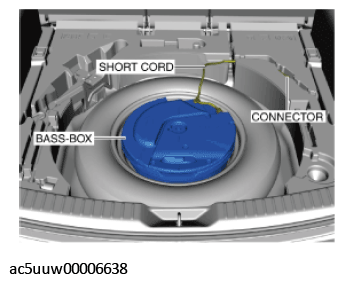

  4. Disconnect the connector.
    G11426051Courtesy of MAZDA MOTORS CORP.
  5. Remove the bass-box and short cord as a single unit.
  6. Install in the reverse order of removal.
