Foot Support Removal/Installation

Remove the following parts:
1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
Partially peel back the floor covering.

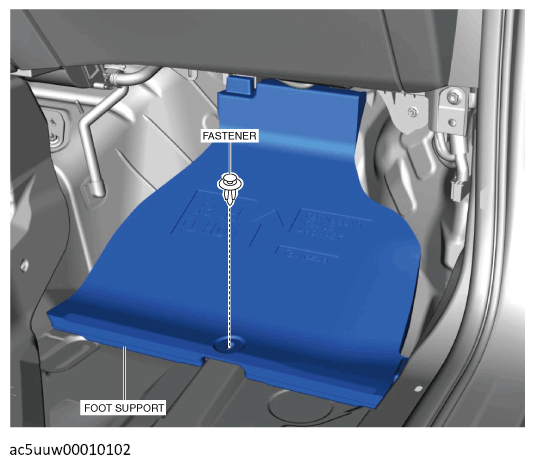

Remove the fastener.
Without 360° View monitor control module

Courtesy of MAZDA MOTORS CORP.

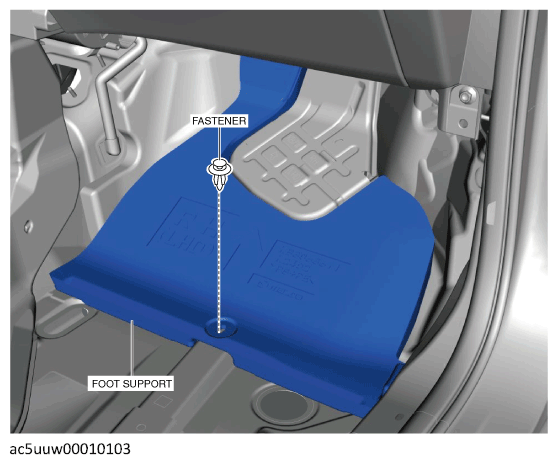

With 360° View monitor control module

Courtesy of MAZDA MOTORS CORP.

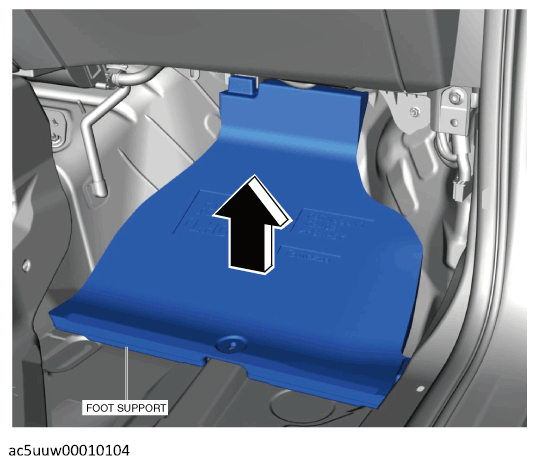

Remove the foot support in the direction of the arrow shown in the figure.
Without 360° View monitor control module

Courtesy of MAZDA MOTORS CORP.

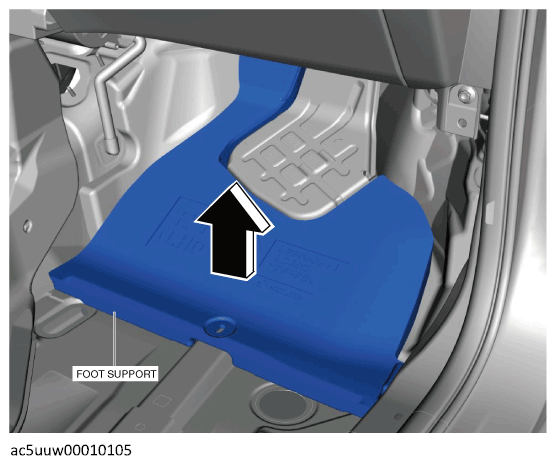

With 360° View monitor control module

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
