Front Scuff Plate Removal/Installation

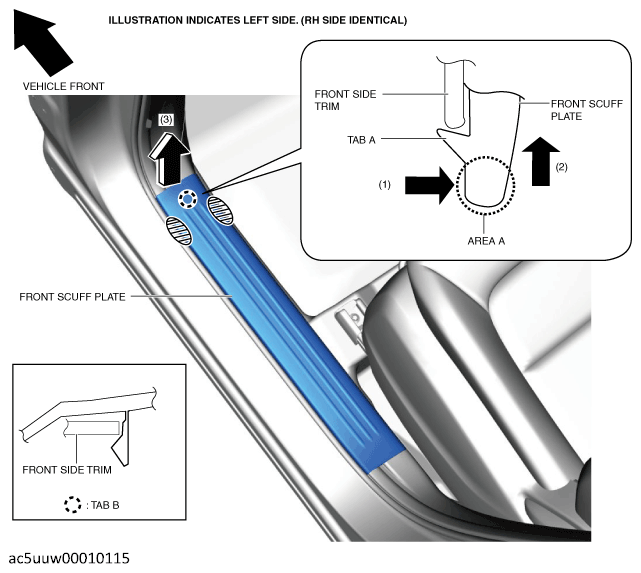

  1. Hold area A shown in the figure, open the front scuff plate in the direction of arrow (1), and detach tab A of the front scuff plate from the front side trim while moving it in the direction of arrow (2).
    G12187723Courtesy of MAZDA MOTORS CORP.
  2. Hold the shaded areas shown in the figure and detach tab B of the front scuff plate from the front side trim while moving the front scuff plate in the direction of arrow (3).

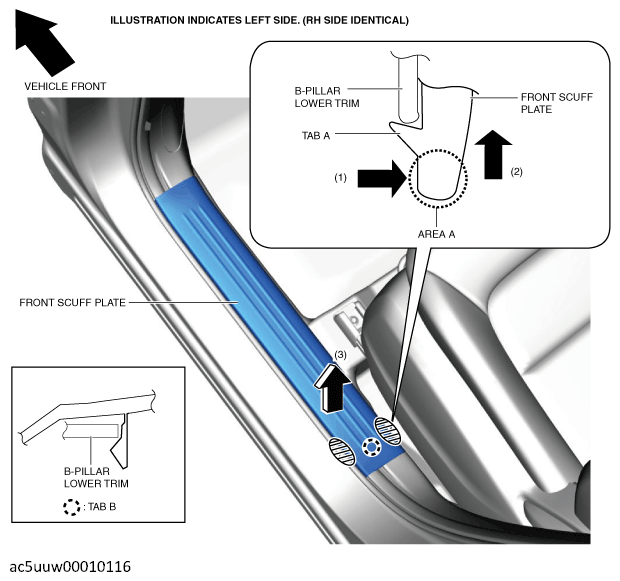

  3. Hold area A shown in the figure, open the front scuff plate in the direction of arrow (1), and detach tab A of the front scuff plate from the B-pillar lower trim while moving it in the direction of arrow (2).
    G12187724Courtesy of MAZDA MOTORS CORP.
  4. Hold the shaded areas shown in the figure and detach tab B of the front scuff plate from the B-pillar lower trim while moving the front scuff plate in the direction of arrow (3).
  5. Hold the shaded areas shown in the figure and detach the clip from the inner panel while moving the front scuff plate in the direction of arrow (1).
    G12187725Courtesy of MAZDA MOTORS CORP.
  6. Hold the shaded areas shown in the figure and detach the clip from the inner panel while moving the front scuff plate in the direction of arrow (2).
  7. Pull out the pins and remove the front scuff plate.
  8. Install in the reverse order of removal.
