Rear Console Disassembly/Assembly: Notes

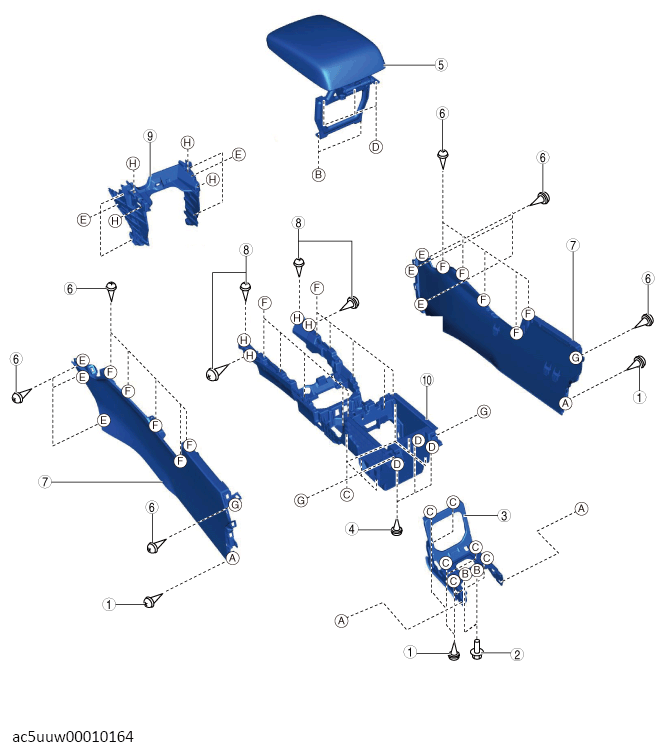

  1. Disassemble in the order shown in the figure.
    G13676603Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Screw
    2 Bolt
    3 Rear console bracket No. 2
    (See CONSOLE LID REMOVAL/INSTALLATION .)
    4 Screw
    5 Console lid
    (See CONSOLE LID REMOVAL/INSTALLATION .)
    6 Screw
    7 Side panel
    (See Side Panel Removal Note .)
    8 Screw
    9 Rear console cover
    10 Rear console box
  2. Assemble in the reverse order of disassembly.
